Brake Hose (G2561002): Removal
WARNING:
Fluid loss is unavoidable, use absorbent cloth or a container to collect the fluid.
CAUTION:
- If brake fluid is spilt on the paintwork, the affected area must be immediately washed down with cold water.
- Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.
NOTE:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
- Remove the wheel and tire.
Refer to: WHEEL AND TIRE
-
CAUTION: If the brake hose banjo bolt has been loosened or removed, a new brake hose assembly must be installed.

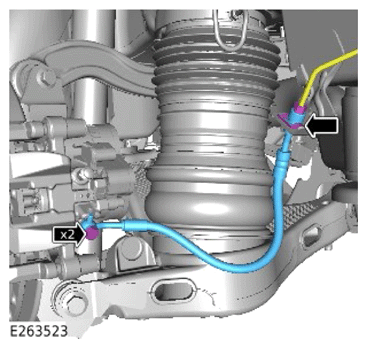

- Disconnect the brake pipe union.
- Remove the retaining clip.
- Remove the banjo bolt.
- Remove and discard the sealing washers.
- Remove and discard the brake hose.
