Brake Caliper (G2131600): Installation

Examine the caliper piston and slide pin seals for damage.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
NOTE:
- This step is only required if previously removed.

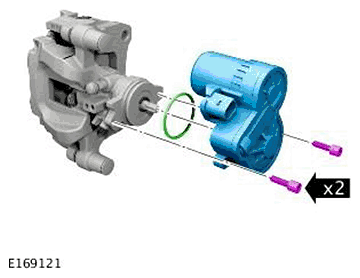

- Install a new O-ring seal.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the EPB actuator.
  Torque : 8 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

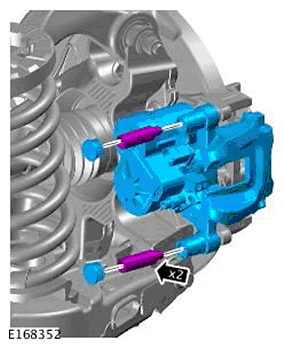

- Install the brake caliper.
  Torque : 28 Nm
CAUTION:
- Inspect the brake hose sealing washers for signs of damage, if damage is present install new sealing washers.
- Be prepared to collect escaping fluids.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

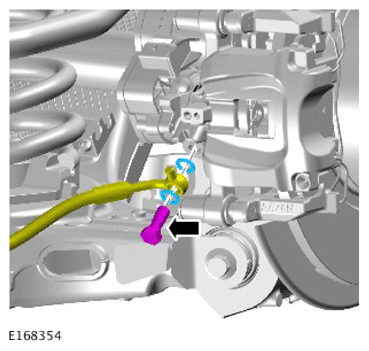

- Install the brake hose assembly.
  Torque : 32 Nm
CAUTION: Make sure that the brake hose is not twisted and is correctly located.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

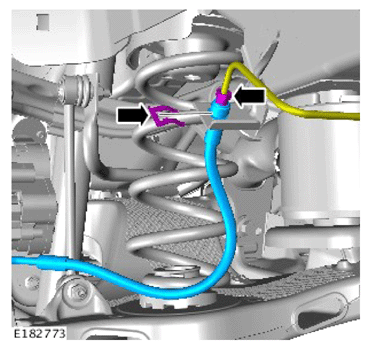

- Install the retaining clip.
- Connect the brake pipe union.
  Torque : 15 Nm
Connect and secure the wiring harness.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

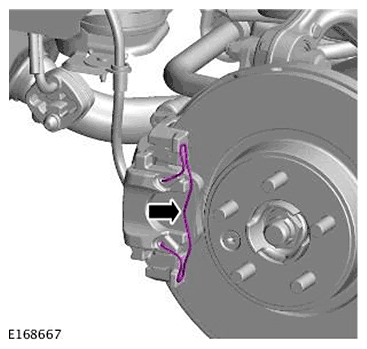

Install the brake pad spring clip.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Bleed the brake system.
Refer to: BRAKE SYSTEM BLEEDING
Calibrate the Electric Park Brake (EPB) using the diagnostic tool.
