Brake Vacuum Pump - TDV6 3.0L Diesel (G1889177): Removal

The following step(s) applies to:

All vehicles

1. Disconnect the startup battery ground cable.

   Refer to: STARTUP BATTERY DISCONNECT AND CONNECT

2. Remove the left secondary bulkhead panel.

   Refer to: SECONDARY BULKHEAD LEFT PANEL - TDV6 3.0L DIESEL

3. Drain the cooling system.

   Refer to: COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING

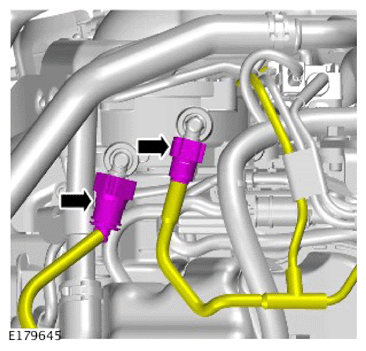

4. Disconnect the vacuum hoses from the brake vacuum pump.

   Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   The following step(s) applies to:

   Vehicles with Diesel Exhaust Fluid (DEF)

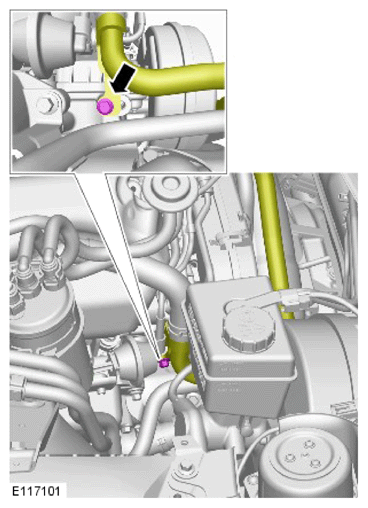

5. Remove the coolant pipe retaining bolt.

   Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

6. Remove the nut and release the coolant pipes from the Exhaust Gas Recirculation (EGR) valve.

   Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

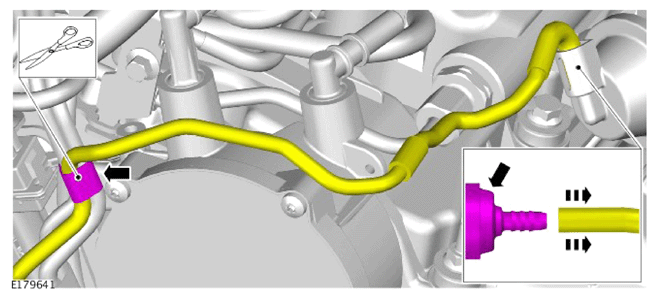

7. Cut the tape and release the vacuum hose.

   Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   The following step(s) applies to:

   Vehicles without Diesel Exhaust Fluid (DEF)

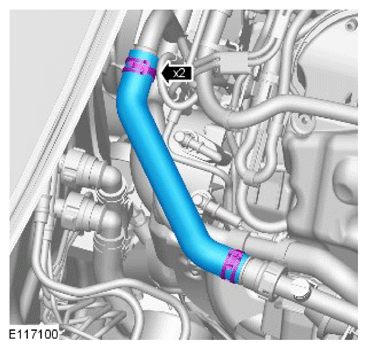

8. Remove the coolant hose.

   Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

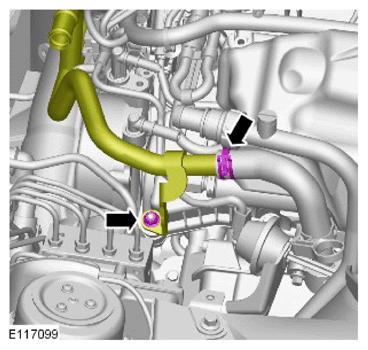

9. Remove the coolant hose retaining bolt.

   Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

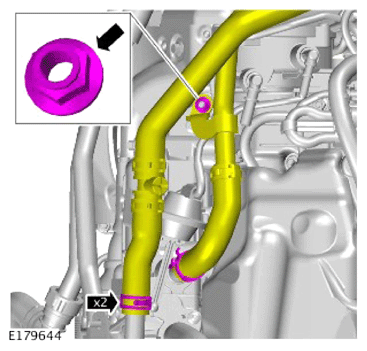

10. Remove the nut and release the coolant pipes from the EGR valve.

    Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    The following step(s) applies to:

    All vehicles

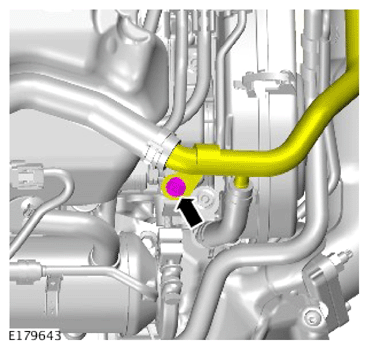

11. Remove the vacuum hose retaining bracket nut.

    Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

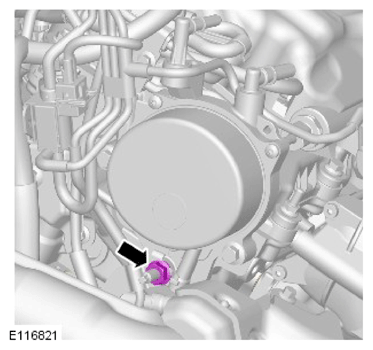

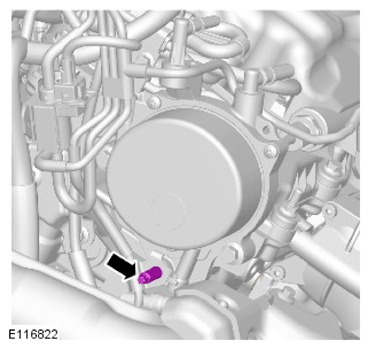

12. Remove the brake vacuum pump stud.

    Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

13. NOTE: Remove and discard the O-ring seal.

    Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

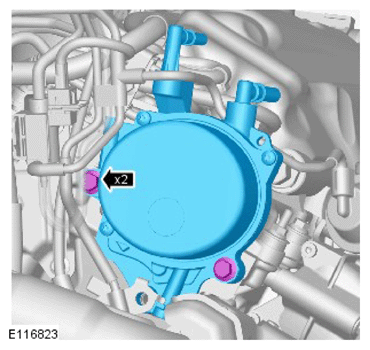

    Remove the brake vacuum pump.
