Rear Stabilizer Bar (G1899819): Removal

NOTE:

Some variation in the illustrations may occur, but the essential information is always correct.
Some components shown removed for clarity.
Removal steps in this procedure may contain installation details.

Raise and support the vehicle with a suitable 2 post lift.
WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

General Equipment: 2 post lift
Remove the rear subframe for access.
Refer to: REAR SUBFRAME
NOTE: The stabilizer bar bushes are bonded in place and do not separate from the bar

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

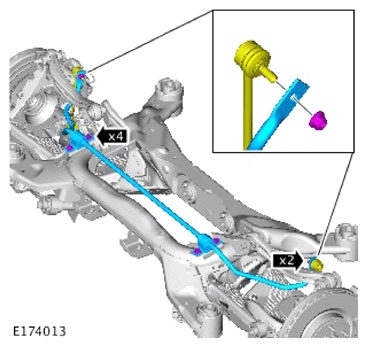

- Remove and discard the rear stabilizer bar link retaining nuts.
- Remove the rear stabilizer bar and retaining bolts.
