Right Exhaust Manifold (G1885944): Removal
WARNING: This page is about a different variant/trim than selected.
CAUTION:
Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.
NOTE:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
- Remove the right side turbocharger.
Refer to the appropriate Right Turbocharger service information.
- Disconnect the exhaust manifold cross over pipe. Discard the nuts, studs and gasket.

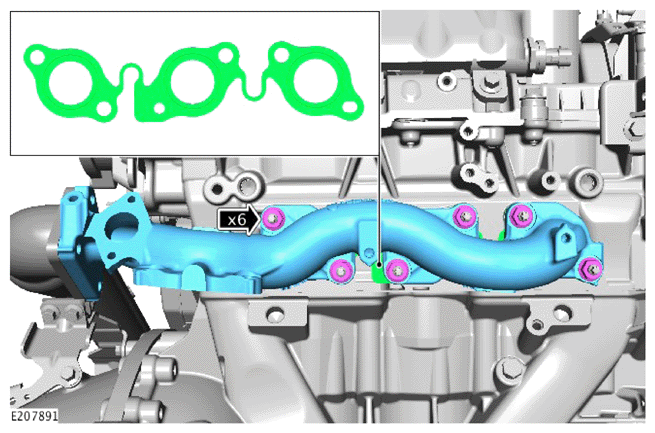

- Remove the exhaust manifold. Discard the nuts and gaskets.
