Right Exhaust Manifold (G1885944): Installation

WARNING: This page is about a different variant/trim than selected.

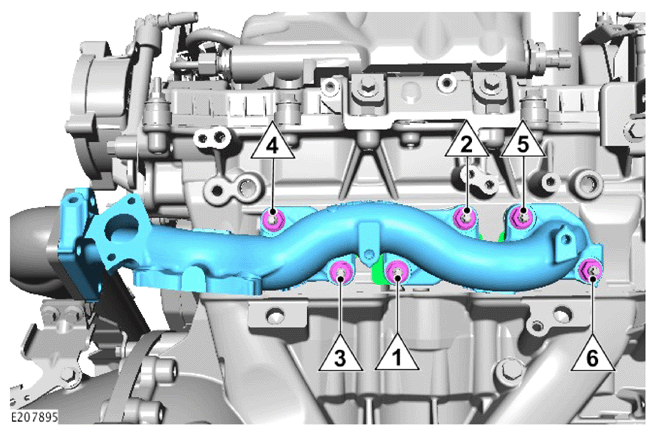

CAUTION: Nuts must be tightened in the sequence illustrated.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the exhaust manifold. Renew the gasket and nuts.

Renew Part: Exhaust manifold gasket Quantity: 1 .

Renew Part: Exhaust manifold to cylinder head nuts Quantity: 1 .

Torque : 28 Nm
Connect the exhaust manifold cross over pipe. Renew the gasket, nuts and studs.
Renew Part: Exhaust manifold cross-over pipe gaskets Quantity: 1 .

Renew Part: Exhaust manifold cross-over pipe studs Quantity: 1 .

Renew Part: Exhaust manifold cross-over pipe nuts Quantity: 1 .

Torque

Studs: 13 Nm

Nuts: 23 Nm
Install the right side turbocharger.
Refer to the appropriate Right Turbocharger service information.
