Oil Cooler (G1879930): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustration showing certain components removed to provide extra clarity.

Drain the cooling system.
Refer to: COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING
Disconnect the startup battery ground cable.
Refer to: BATTERY AND CABLES
Remove the right valve cover.
Refer to: RIGHT VALVE COVER
Remove the oil filter.
Refer to: OIL FILTER ELEMENT
Remove the glow plugs.
Refer to: GLOW PLUGS
Disconnect the vacuum tubes.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

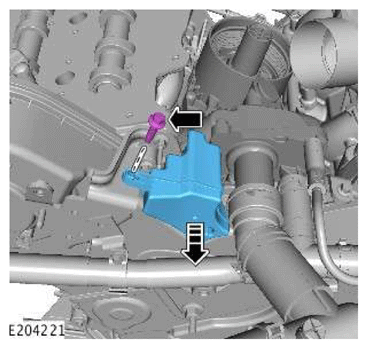

Remove the vacuum reservoir.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
CAUTION: Be prepared to collect escaping coolant.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Disconnect the coolant hoses.
CAUTION: Be prepared to collect escaping coolant.

NOTE: Remove and discard the seals.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

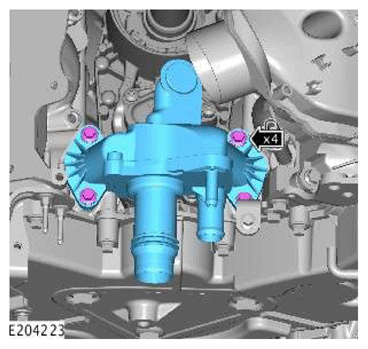

Remove the engine coolant outlet.
NOTE: Remove and discard the seals.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

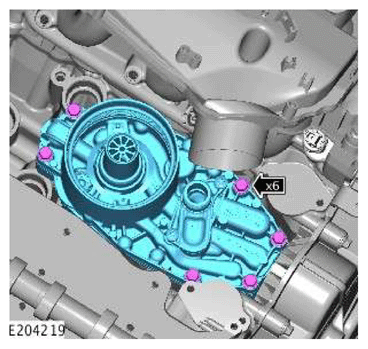

Remove the oil cooler.
