Left Exhaust Manifold (G1885943): Removal

WARNING: This page is about a different variant/trim than selected.

CAUTION: Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Remove the left side turbocharger.
Refer to the appropriate service information. .
Disconnect and release the exhaust manifold sensor wiring harness.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

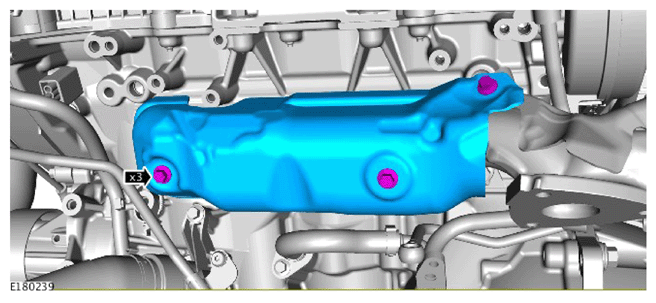

Remove the exhaust manifold front heat shield.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

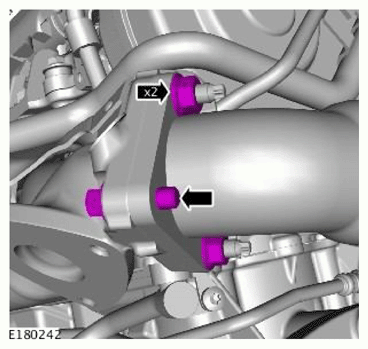

Disconnect the exhaust manifold cross over pipe. Discard the nuts, and bolt.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
CAUTION: Discard the studs.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

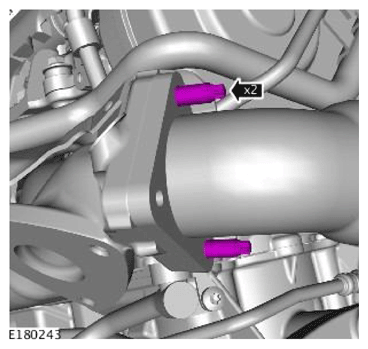

Remove and discard the exhaust manifold cross over pipe studs.

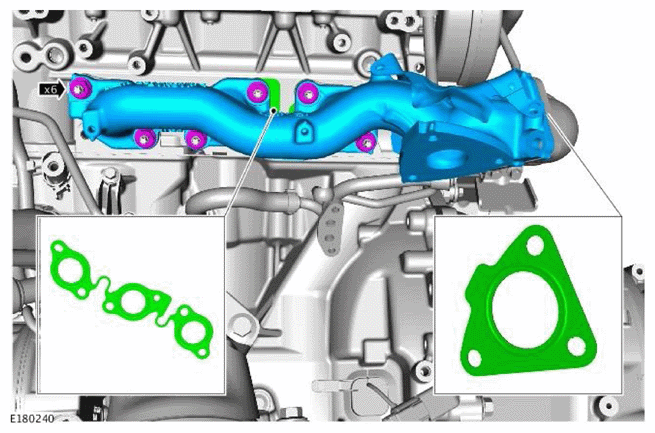

Remove the exhaust manifold. Discard the nuts and gaskets.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
NOTE: Do not disassemble further if the component is removed for access only.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

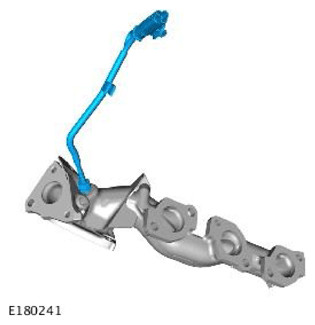

Remove the exhaust manifold sensor.

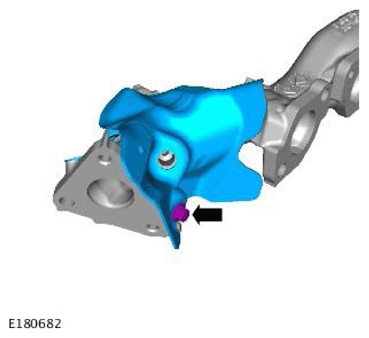

Remove the exhaust manifold rear heat shield.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
