Left Exhaust Manifold (G1885943): Installation

WARNING: This page is about a different variant/trim than selected.

NOTE: Only perform steps 1 and 2 if the components were previously removed.

Install the exhaust manifold rear heat shield.
Torque : 11 Nm
Install the exhaust manifold sensor.
Torque : 28 Nm

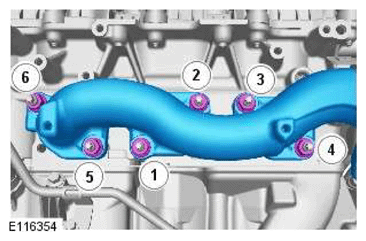

CAUTION: Nuts must be tightened in the sequence illustrated.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the exhaust manifold. Renew the gasket and nuts.

Renew Part: Exhaust manifold gasket Quantity: 1.

Renew Part: Exhaust manifold nuts Quantity: 1.

Torque : 28 Nm
Connect the exhaust manifold cross over pipe. Renew the gasket, studs, nuts and bolt.
Renew Part: Exhaust manifold cross-over pipe gaskets Quantity: 1.

Renew Part: Exhaust manifold cross-over pipe studs Quantity: 1.

Renew Part: Exhaust manifold cross-over pipe nuts and bolts Quantity: 1.

Torque

Studs: 13 Nm

Nuts: 23 Nm

Bolt: 23 Nm
Install the front exhaust manifold heat shield.
Torque : 11 Nm
Connect and secure the exhaust manifold sensor wiring harness.
Install the left side turbocharger.
Refer to the appropriate Left Turbocharger service information. .
