Exhaust Manifold Cross-Over Pipe (G2165852): Removal

WARNING: This page is about a different variant/trim than selected.

WARNING: Observe due care when working near a hot exhaust system.

NOTE:

This procedure contains some variation in the illustration depending on the vehicle specification, but essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING

General Equipment: 2 post lift
Remove the catalytic converter assembly.
Refer to: CATALYTIC CONVERTER AND DIESEL PARTICULATE FILTER ASSEMBLY
Remove the front driveshaft.
Refer to: FRONT DRIVESHAFT - TDV6 3.0L DIESEL
Remove the driveshaft from the rear differential.
Refer to: DRIVESHAFT
NOTE: Support as necessary.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

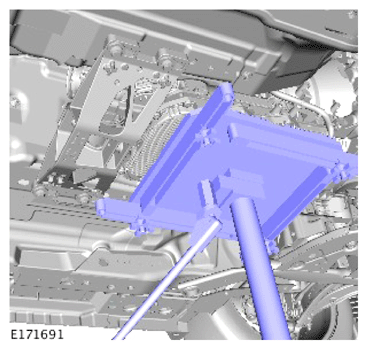

Support the transmission assembly using a suitable lift.

General Equipment: Transmission jack

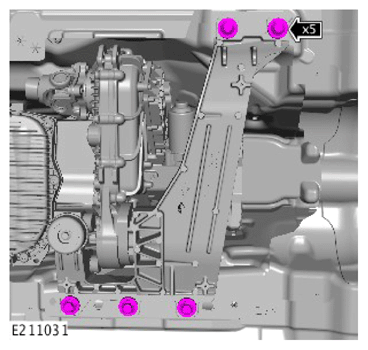

Remove the 5 bolts from the transmission support and allow the transmission to be fully supported by the transmission jack.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

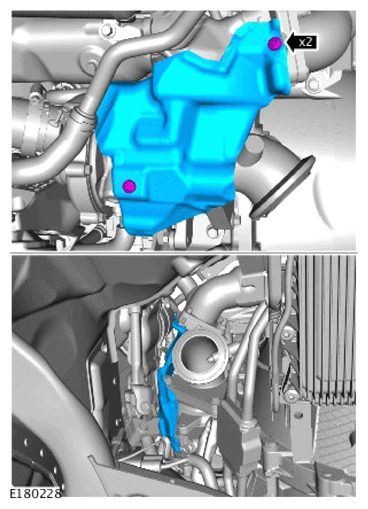

Remove the right side turbocharger heatshield.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
NOTE: Remove and discard the gasket.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

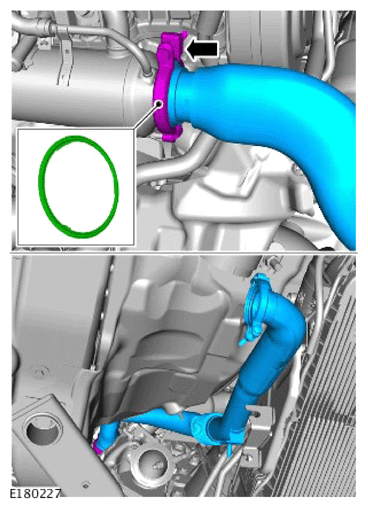

Release the exhaust cross over pipe clamp and remove and discard the gasket.

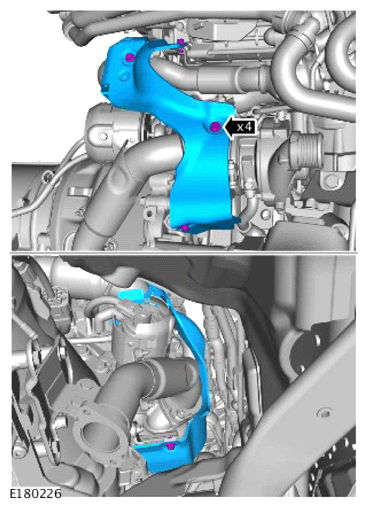

Remove the left side tubobcharger heat shield.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
NOTE: Discard the nuts and bolts.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

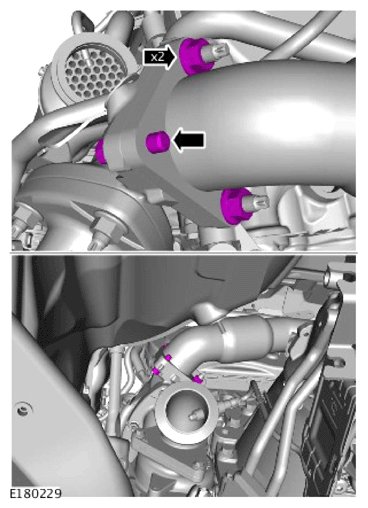

Remove the 2 exhaust cross over pipe nuts and 1 bolt.
CAUTION: Discard the nuts.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

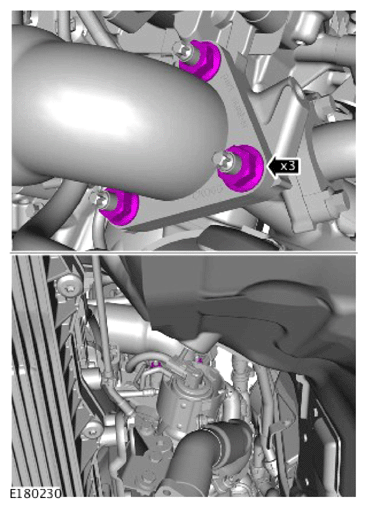

Remove and discard the 3 exhaust cross over pipe nuts.

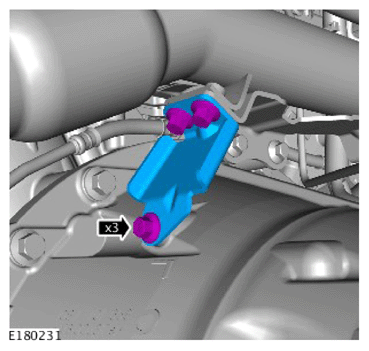

Remove the left side exhaust cross over pipe bracket.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

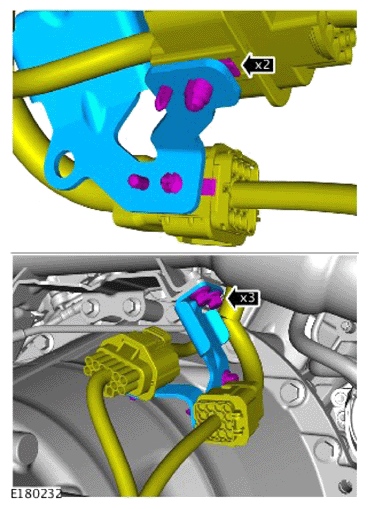

- Release the wiring harness from the right side exhaust cross over pipe bracket.
- Remove the right side exhaust cross over pipe bracket.
NOTE: Remove and discard the gaskets.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

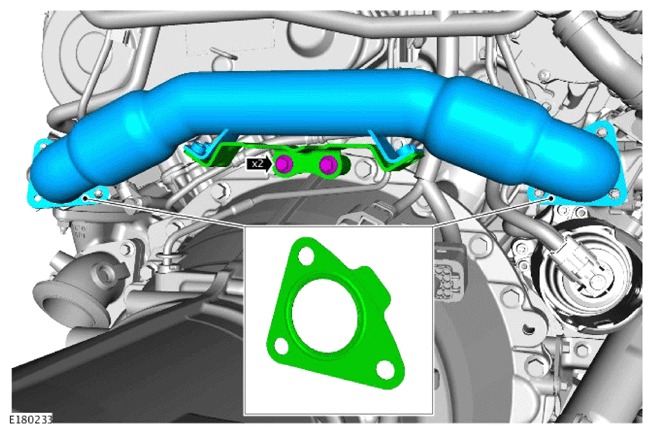

- Remove the 2 bolts from the center exhaust cross over pipe bracket.
- Remove the exhaust cross over pipe and discard both gaskets.
CAUTION: Discard the studs.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

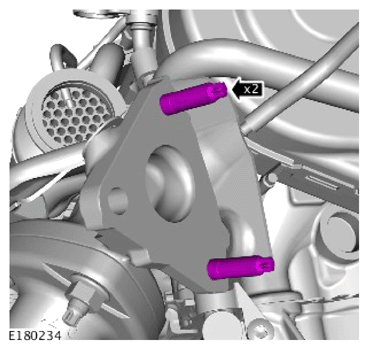

Remove the 2 studs from the left manifold assembly.
CAUTION: Discard the studs.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

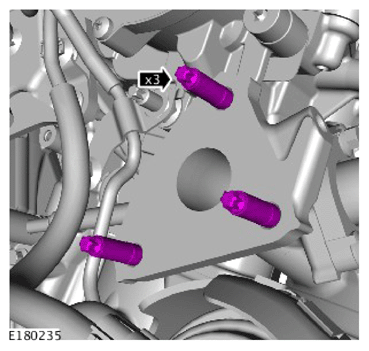

Remove the 3 studs from the right side manifold assembly.
