Exhaust Manifold Cross-Over Pipe (G2165852): Installation

Install 3 new studs for the right side manifold assembly.

Renew Part: Exhaust manifold cross-over pipe studs Quantity: 1  .

Torque  : 13 Nm

Install 2 new studs for the left side manifold assembly.

Renew Part: Exhaust manifold cross-over pipe studs Quantity: 1  .

Torque  : 13 Nm

• Install the exhaust cross over pipe into the correct position.
• Make sure that 2 new gaskets are fitted between the exhaust gas cross over pipe and the exhaust manifold assembly.

  Renew Part: Exhaust manifold cross-over pipe gaskets Quantity: 1  .

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

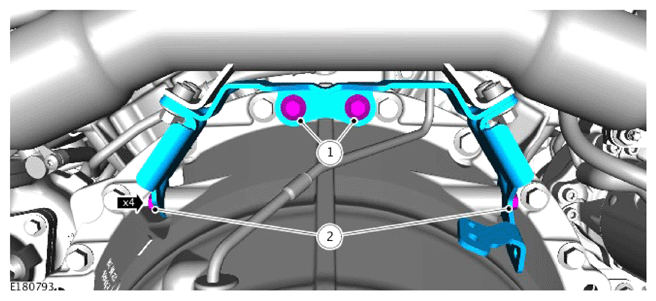

• Install the exhaust cross-over pipe bracket.
• Tighten the 4 bolts finger tight at this stage.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

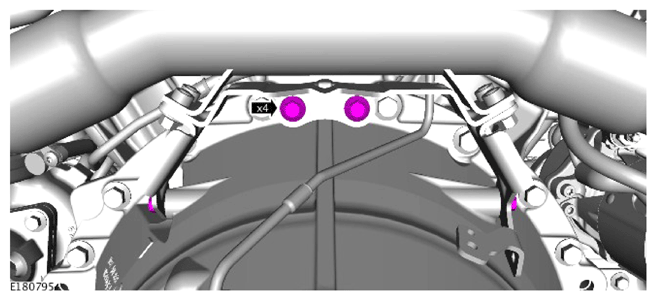

Fully tighten the 4 bolts to the correct torque.

Torque  : 23 Nm

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque  : 23 Nm

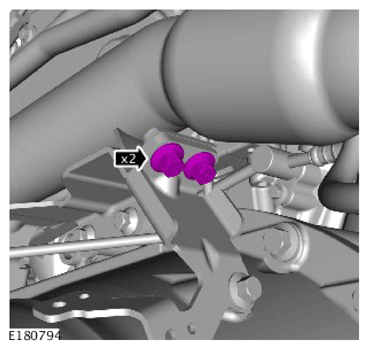

• Install the right side exhaust cross over pipe bracket and tighten to the correct torque.

  Torque  : 23 Nm

• Install the wiring harness onto the right side exhaust cross over pipe bracket.

Torque  : 23 Nm

Install the 3 exhaust cross over pipe nuts and tighten to the correct torque.

Renew Part: Exhaust manifold cross-over pipe nuts Quantity: 1  .

Torque  : 23 Nm

Install the 2 exhaust cross over pipe nuts and 1 bolt.

Renew Part: Exhaust manifold cross-over pipe nuts and bolts Quantity: 1  .

Torque  : 23 Nm

Torque  : 11 Nm

Install the exhaust cross over pipe clamp and install a new gasket.

Renew Part: Exhaust manifold cross-over pipe gaskets Quantity: 1  .

Torque  : 5.5 Nm

Torque  : 11 Nm

Torque  : 45 Nm

General Equipment: Transmission jack

Refer to: DRIVESHAFT

Refer to: FRONT DRIVESHAFT - TDV6 3.0L DIESEL

Refer to: CATALYTIC CONVERTER AND DIESEL PARTICULATE FILTER ASSEMBLY
