Engine Oil Vacuum Draining And Filling (G2152249): Draining
WARNING: This page is about a different variant/trim than selected.
WARNING:
The spilling of hot engine oil is unavoidable during this procedure, care must be taken to prevent scalding.
CAUTION:
Make sure the engine is warm.
NOTE:
- Make sure that the vehicle is parked on level ground.
- Clean the components general area prior to dismantling.
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- Engine oil vacuum draining and filling is the recommended procedure for engine oil change during a scheduled service. Scheduled service labor times are calculated using this method.
- Start the engine and allow to run for 10 minutes, stop the engine.
- Remove the engine cover.
Refer to: ENGINE COVER - TDV6 3.0L DIESEL
- Remove the oil filter element.
Refer to: OIL FILTER ELEMENT
- Remove the oil filler cap.
-
CAUTION: Allow 10 minutes from turning the engine off before starting oil extraction.
Remove the cover.
-
NOTE: Some variation in the illustrations may occur, but the essential information is always correct.

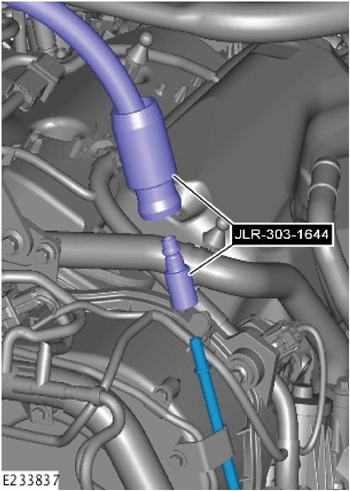

Using the oil vacuum pump drain the oil out through the oil extraction tube.
Special Tool(s): JLR-303-1644
-
- Remove the oil vacuum pump.
