Vacuum Pump
WARNING: This page is about a different variant/trim than selected.
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|

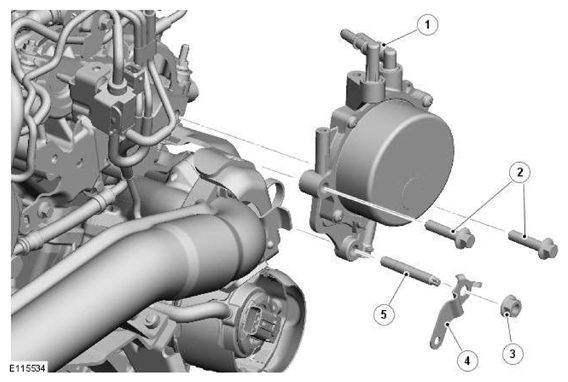

| ITEM |
DESCRIPTION |
| 1 |
Vacuum pump connections |
| 2 |
Bolt (quantity 2) |
| 3 |
Nut |
| 4 |
Bracket |
| 5 |
Stud |
The vacuum pump is located at the rear of bank 1 cylinder head and is driven from the exhaust camshaft.
