Piston Cooling Oil Jets

WARNING: This page is about a different variant/trim than selected.

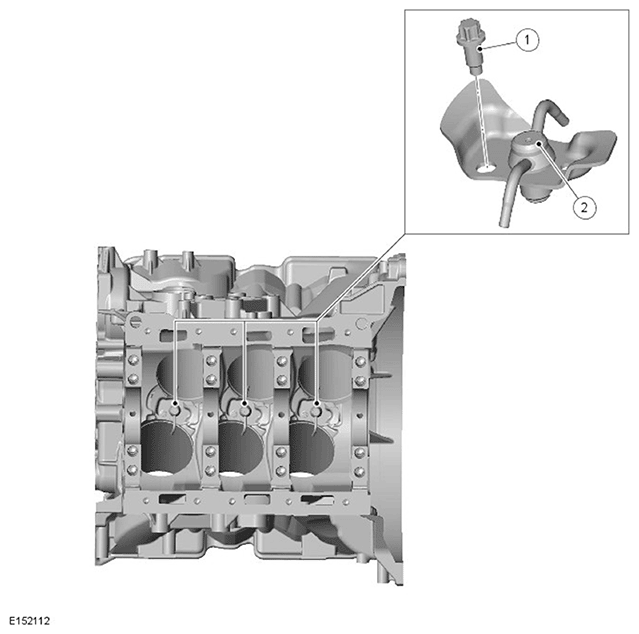

G11695271Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
ITEM DESCRIPTION
1 Bolt
2 Piston cooling oil jet

Piston cooling oil jets located in the cylinder block provide piston and gudgeon pin lubrication and cooling.
