Exhaust Manifolds
WARNING: This page is about a different variant/trim than selected.
NOTE:

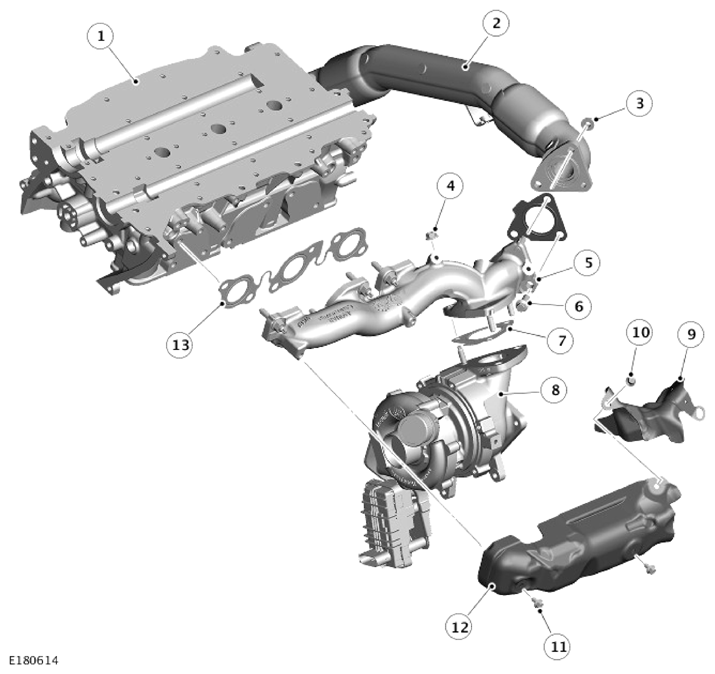

Bank 2 exhaust manifold is shown, bank 1 exhaust manifold is similar.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Cylinder head |
| 2 | Exhaust manifold cross-over pipe |
| 3 | Nut (quantity 2) |
| 4 | Nut (quantity 3) |
| 5 | Exhaust manifold |
| 6 | Bolt |
| 7 | Gasket |
| 8 | Variable geometry turbine turbocharger (Primary turbocharger) |
| 9 | Exhaust manifold heatshield |
| 10 | Bolt |
| 11 | Bolt (quantity 2) |
| 12 | Exhaust manifold heatshield |
| 13 | Gasket |
The exhaust manifolds are cast from an iron alloy with a high nickel content and sealed by means of a steel gasket. Spacers on the securing bolts allow the exhaust manifolds to expand and retract with changes of temperature while maintaining the clamping loads.
The bank 1 exhaust manifold has a connection for the High Pressure (HP) Exhaust Gas Recirculation (EGR) valve.
The engine is equipped with 2 turbochargers, which fix to the exhaust manifolds by a 3-hole flange with a steel gasket.
For additional information, Refer to the appropriate Fuel Charging and Controls TDV6 3.0L Diesel, Description and Operation turbocharger service information .
