Section 9 (Engine - TDV6 3.0L Diesel -- Range Rover Velar/L560)
>>
Engine - TDV6 3.0L Diesel (G2297235)
>>
Description And Operation
>>
Engine - TDV6 3.0L Diesel (G1898610)
>>
Description
>>

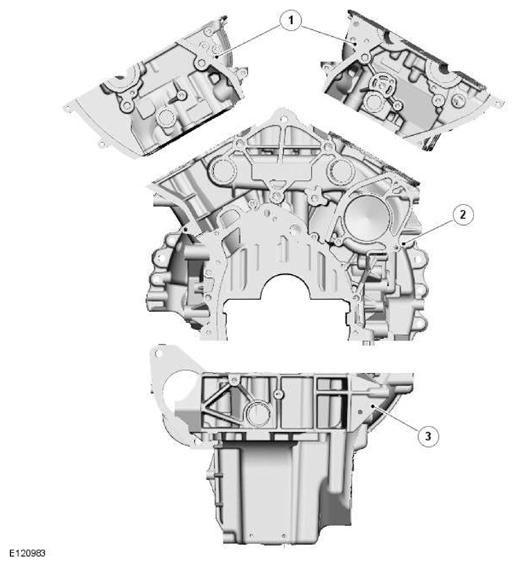

Engine Structure
Engine Structure
WARNING:
This page is about a different variant/trim than selected.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
ITEM
DESCRIPTION
1
Cylinder heads
2
Cylinder block
3
Oil pan
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
