Cylinder Numbering And Engine Data
WARNING: This page is about a different variant/trim than selected.
NOTE:
Front of engine is at cylinder 1
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
| ITEM |
DESCRIPTION |

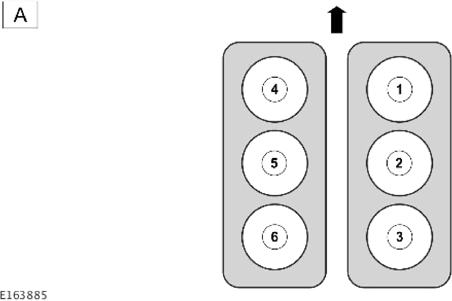

| A |
DIN standard cylinder numbering |
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|

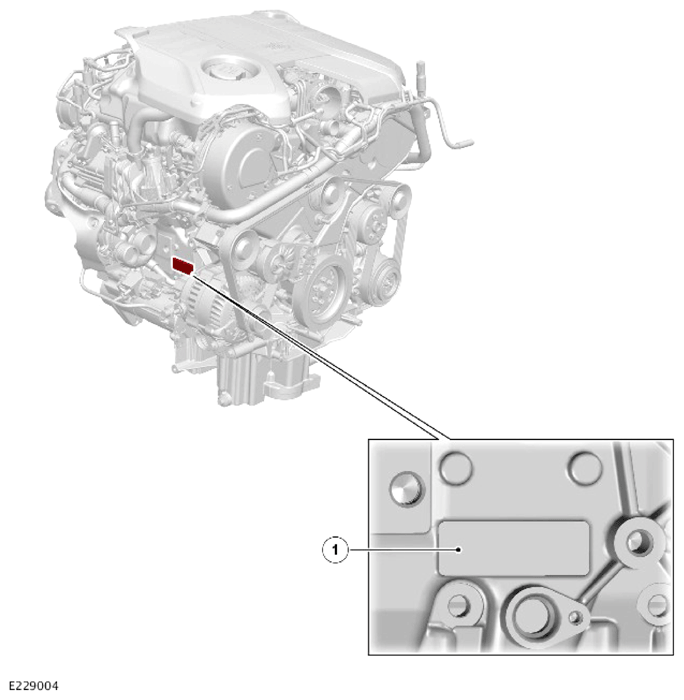

| ITEM |
DESCRIPTION |
| 1 |
Engine serial number location |
Engine data is marked on the right side of the cylinder block.
DIN Cylinder Firing Order
1-4-2-5-3-6
