Crankshaft Rear Seal
WARNING: This page is about a different variant/trim than selected.

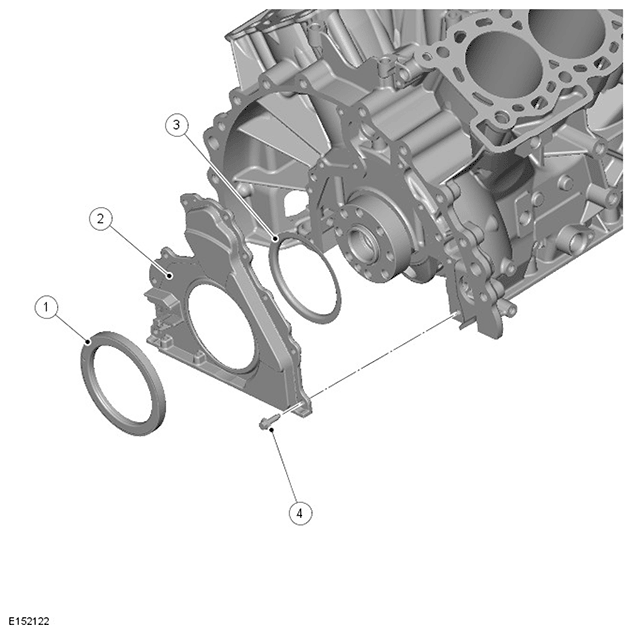

| ITEM | DESCRIPTION |
|---|---|
| 1 | Reluctor ring |
| 2 | Crankshaft rear seal cover |
| 3 | Crankshaft |
| 4 | Bolt (quantity 10) |
The crankshaft rear seal and cover assembly is a 1-piece unit and is supplied with a fitting sleeve. The seal and cover have 2 locating dowels, 10 fixing bolts and a seal. In addition, the cover has a location for the Crankshaft Position (CKP) sensor.
