Camshaft Covers
WARNING: This page is about a different variant/trim than selected.
NOTE:

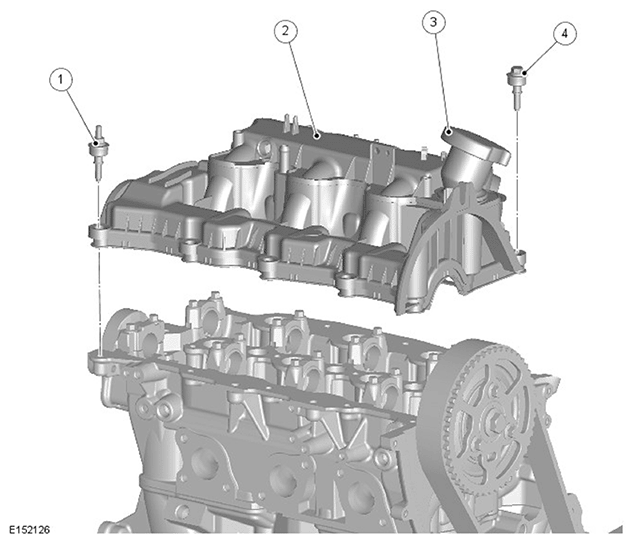

Bank 1 cylinder head is shown, bank 2 cylinder head is similar.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Stud (quantity 8) |
| 2 | Camshaft cover - Intake manifold assembly |
| 3 | Oil filler cap |
| 4 | Bolt (quantity 5) |
The camshaft covers are manufactured from glass filled nylon and contain silicon rubber gaskets to seal the joints between the camshaft covers and the cylinder heads.
The bank 1 camshaft cover incorporates an outlet for the full load engine breather and the filler cap. The bank 2 camshaft cover incorporates an outlet for the part load engine breather.
