Left Cylinder Head (G2128210): Installation

WARNING: This page is about a different variant/trim than selected.
  1. Check the cylinder head for distortion.

    Refer to: CYLINDER HEAD DISTORTION

  2. CAUTION:
    • Make sure care is taken when handling the cylinder head gasket.
    • The cylinder head gasket must be installed over the cylinder block dowels.
    • Make sure that the mating faces are clean and free of foreign material.

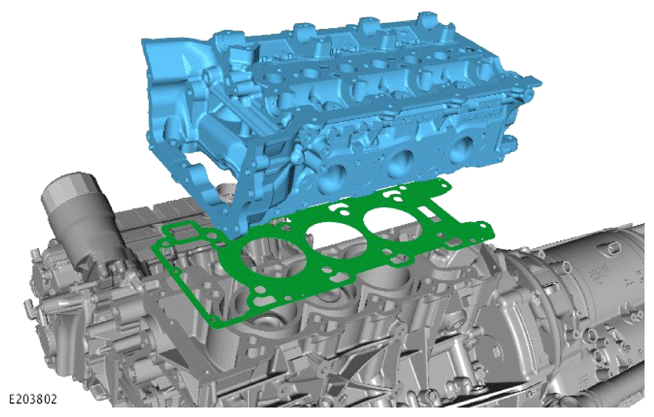

    G14283906Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the cylinder head. Renew the new gasket.

    Renew Part: Cylinder head gasket Quantity: 1  .

  3. CAUTION: Make sure that new cylinder head bolts are installed.
    NOTE: Tighten the bolts in the indicated sequence.

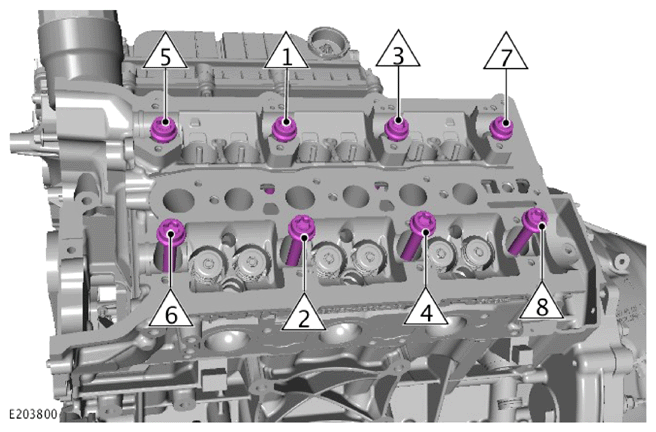

    Fig 1: LH Cylinder Head Bolts Tightening Sequence
    G14283908Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Tighten the bolts 1 to 8 in the sequence shown.

      Install the Special Tool(s): JLR-303-1653  , 303-1492

      Renew Part: Cylinder head bolts Quantity: 8  .

      Torque  : 20 Nm

    2. Tighten the bolts 1 to 8 in the sequence shown.

      Torque  : 35 Nm

    3. Loosen bolt 1 then tighten.

      Torque  : 35 Nm

    4. Loosen bolts 2 to 8 then tighten.

      Torque  : 35 Nm

    5. Tighten bolts 1 to 8 in the sequence shown.

      Torque  : 90°

    6. Tighten bolts 1 to 8 in the sequence shown.

      Torque  : 120°

  4. Remove the special tools.

    Remove the Special Tool(s): JLR-303-1653  , 303-1492

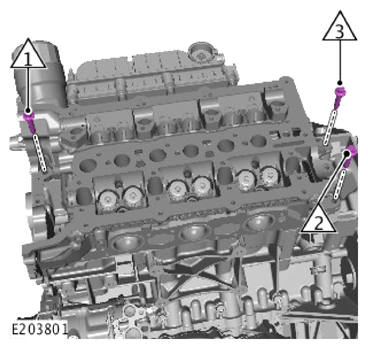

  5. G14283909Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the new cylinder head bolts in the sequence shown.

    Renew Part: Cylinder head bolts Quantity: 3  .

    Torque  : 25 Nm

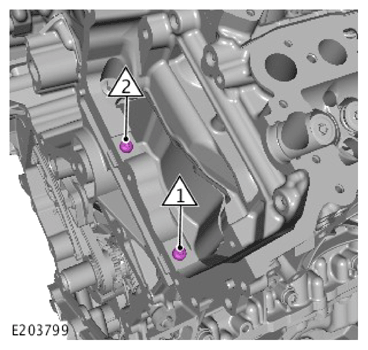

  6. G14283910Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the new cylinder head bolts in the sequence shown.

    Renew Part: Cylinder head bolts Quantity: 2  .

    Torque  : 12 Nm

  7. CAUTION:
    • If a new cylinder head has been installed then new tappets must be installed.
    • If the cylinder head is being removed without a new component being installed, the tappets must be installed in their original positions.

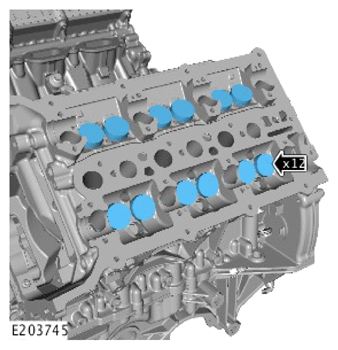

    G14283901Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the 12 tappets, lubricate with clean engine oil.

  8. Install the oil evacuation pipe. Renew the O-ring seal.

    Renew Part: Oil evacuation tube O-ring seal Quantity: 1  .

    Torque  : 12 Nm

  9. Secure the fuel pipe.

    Torque  : 10 Nm

  10. Install the engine coolant outlet pipe. Renew O-ring seals.

    Renew Part: Engine coolant outlet upper O-ring seal Quantity: 2  .

    Torque  : 10 Nm

    • Connect the 2 coolant hoses.
    • Remove the coolant hose clamp.
    • Connect the electrical connector and secure the 2 clips.
  12. Install the knock sensor.

    Torque  : 20 Nm

  13. Install the left camshaft.

    Refer to: LEFT CAMSHAFT

  14. Install the left exhaust manifold.

    Refer to: LEFT EXHAUST MANIFOLD

  15. Connect the startup battery ground cable.

    Refer to: LIFTING
