Crankshaft Pulley (G1851000): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Disconnect the startup battery ground cable.
Refer to: SPECIFICATIONS
Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Remove the cooling fan.
Refer to: ELECTRIC COOLING FAN AND SHROUD
Remove the starter motor.
Refer to: STARTER MOTOR
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the supercharger drive belt.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

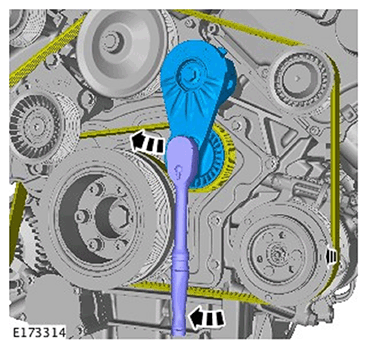

Remove the accessory drive belt.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the special tool.
- Vehicles without Auto stop/start system.
  Special Tool(s): 303-1448
- Vehicles with Auto stop/start system.
  Special Tool(s): JLR-303-1304
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

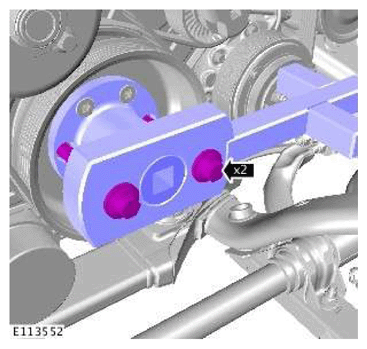

Remove the bolts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

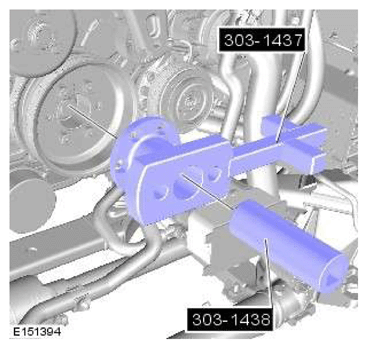

- Install the special tools.
- Special Tool(s): 303-1437
- Special Tool(s): 303-1438
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the bolts.

Torque : 25 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the special tool.
- Vehicles without Auto stop/start system.
  Special Tool(s): 303-1448
- Vehicles with Auto stop/start system.
  Special Tool(s): JLR-303-1304
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

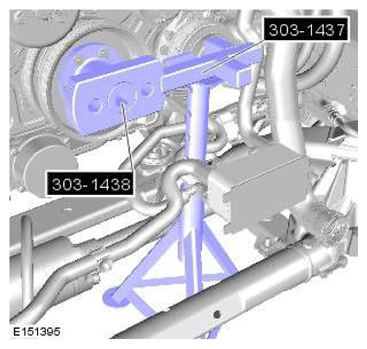

- Using a suitable vehicle stand, support the special tools.
- Special Tool(s): 303-1437
- Special Tool(s): 303-1438
NOTE: The crankshaft pulley bolt will be very tight.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

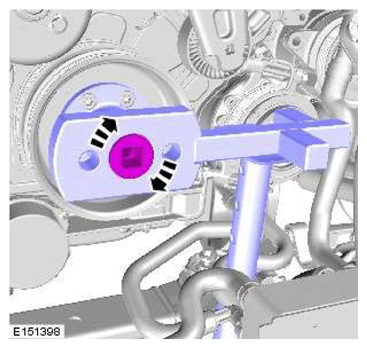

Remove the crankshaft pulley bolt.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the special tool.
- Vehicles without Auto stop/start system.
  Special Tool(s): 303-1448
- Vehicles with Auto stop/start system.
  Special Tool(s): JLR-303-1304
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the two bolts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the special tools.
- Special Tool(s): 303-1437
- Special Tool(s): 303-1438
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove and discard the bolt.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the bolts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

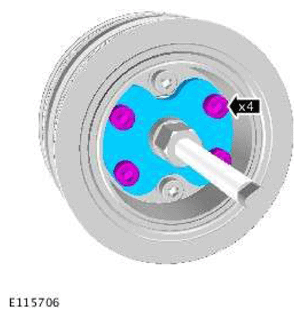

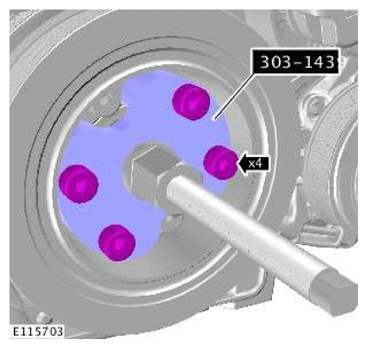

- Install the special tool.
- Special Tool(s): 303-1440
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the special tool.
- Special Tool(s): 303-1441
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

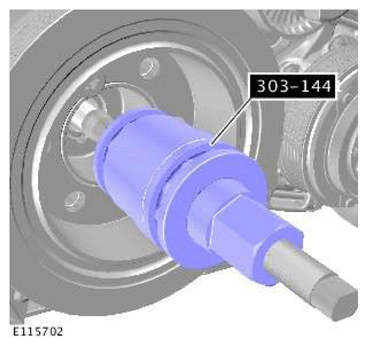

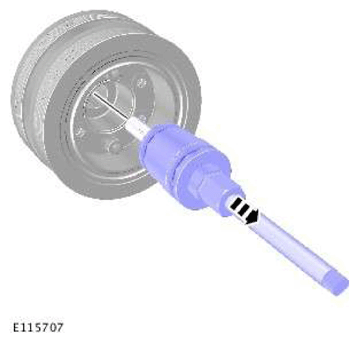

- Install the special tool.
- Special Tool(s): 303-1439
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

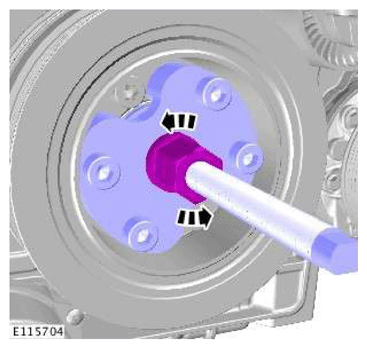

Rotate the special tool nut to remove the crankshaft pulley.
NOTE: Make sure to clean the threads in the end of the crankshaft and that the crank nose is free of any foreign materials.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

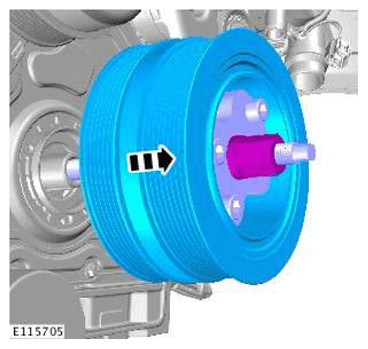

- Remove the crankshaft pulley.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the special tool.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the special tool.
