Crankshaft Pulley (G1851000): Installation

WARNING: This page is about a different variant/trim than selected.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

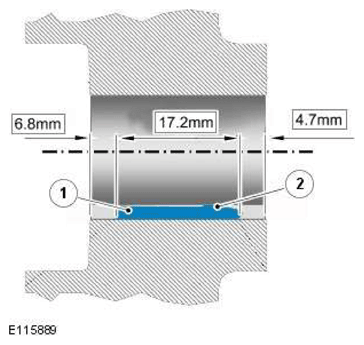

- Apply RTV sealant to the crankshaft pulley keyway.
- Make sure that the RTV sealant is applied in a 2 mm diameter bead.
- Make sure that when the RTV sealant is applied that the RTV sealant is level with the top of the keyway.
NOTE: Make sure to clean the threads in the end of the crankshaft and that the crank nose is free of any foreign materials.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

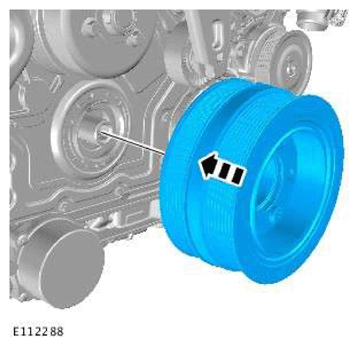

- Install the crankshaft pulley.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

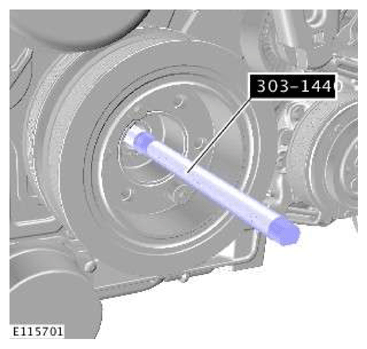

- Install the special tool.
- Special Tool(s): 303-1440

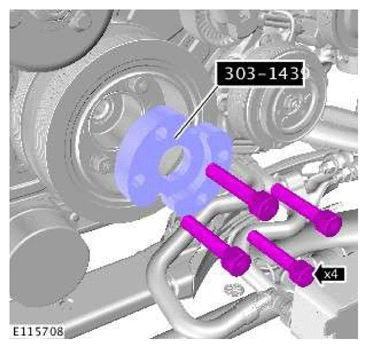

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the special tool.
- Special Tool(s): 303-1439
- Torque : 25 Nm

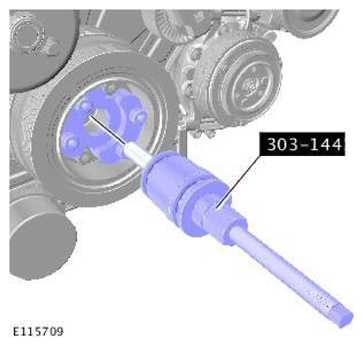

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the special tool.
- Special Tool(s): 303-1441
CAUTION: Rotate the crankshaft pulley installation tool until the pulley is fully located, do not over tighten. Failure to do this may result in damage to the components.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the special tool.

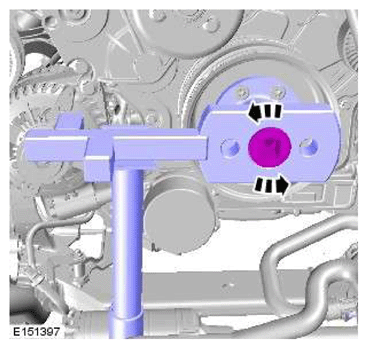

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the special tool.
- Special Tool(s): 303-1439
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the special tool.

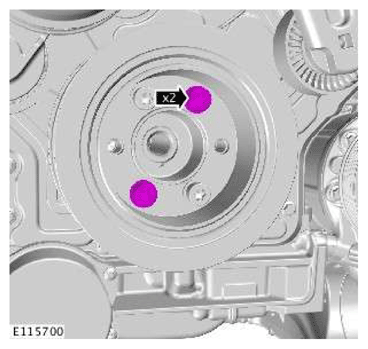

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

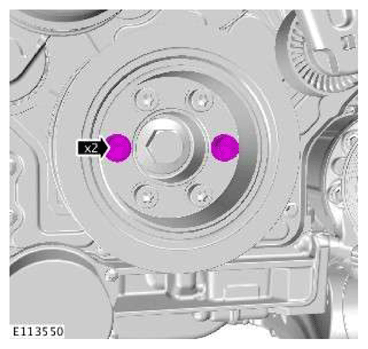

- NOTE: The original M10 bolts can be reused.

  Clean the original crankshaft pulley bolts and apply loctite 270 to the threads before installation.
- Torque : 65 Nm
WARNING: Make sure that a new bolt is installed.

CAUTION: Tighten the component finger tight first.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

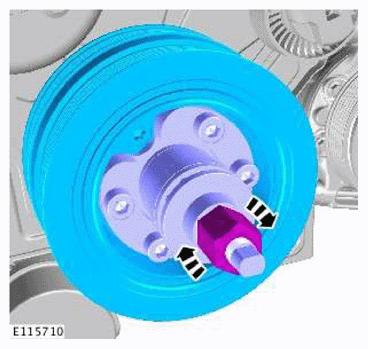

Install the crankshaft pulley bolt.

Renew Part: Crankshaft pulley bolt Quantity: 1 .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

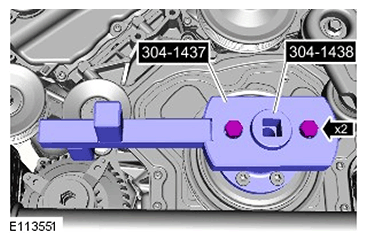

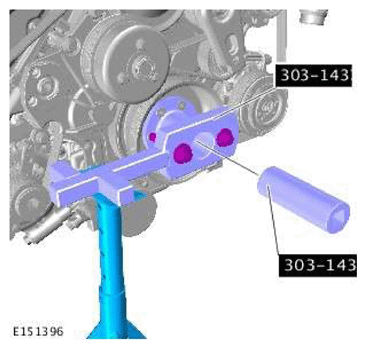

- Install the special tools.
- Special Tool(s): 303-1437
- Special Tool(s): 303-1438
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Tighten the special tool bolts.

Torque : 25 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

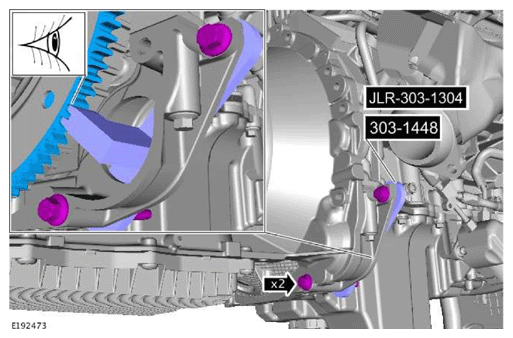

- Remove the special tool.
- Vehicles without Auto stop/start system.
  Special Tool(s): 303-1448
- Vehicles with Auto stop/start system.
  Special Tool(s): JLR-303-1304
NOTE:
- The use of a torque multiplier capable of 600 Nm will be required.
- The illustration shows the tool positioning for LH threaded crankshaft damper bolts, RH threaded crankshaft bolts will require the tool position to be the opposite direction.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Tighten the crankshaft pulley bolt. Make sure that the socket is turned through 270 degrees not the torque wrench.

Torque

Stage 1: 200 Nm

Stage 2: 270°
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the special tool.
- Vehicles without Auto stop/start system.
  Special Tool(s): 303-1448
- Vehicles with Auto stop/start system.
  Special Tool(s): JLR-303-1304
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the special tools.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- NOTE: The original M10 bolts can be reused.

  Clean the original crankshaft pulley bolts and apply loctite 270 to the threads before installation.
- Torque : 65 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the special tool.
- Vehicles without Auto stop/start system.
  Special Tool(s): 303-1448
- Vehicles with Auto stop/start system.
  Special Tool(s): JLR-303-1304
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

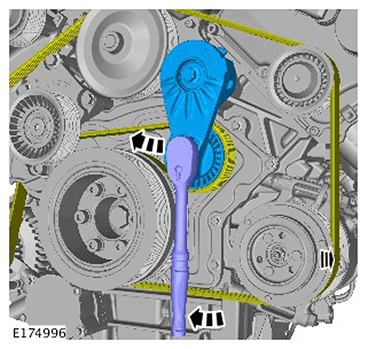

Install the accessory drive belt.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

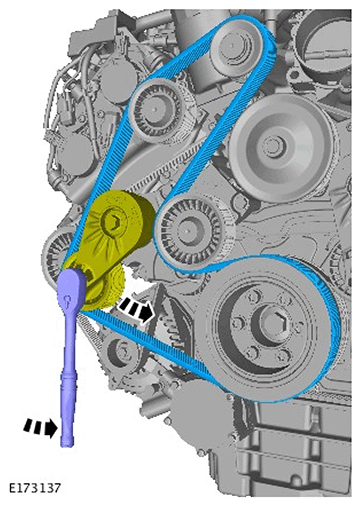

Install the supercharger drive belt.
Install the cooling fan.
Refer to: ELECTRIC COOLING FAN AND SHROUD
Install the starter motor.
Refer to: STARTER MOTOR
Re-connect the startup battery ground cable.
Refer to: SPECIFICATIONS
