Valve Clearance Adjustment (G1851592): Adjustment
WARNING: This page is about a different variant/trim than selected.
- Remove the camshafts.
Refer to: LEFT CAMSHAFT
Refer to: RIGHT CAMSHAFT
- CAUTION:
- Do not use a magnet to remove the tappet.
- Use the following formula to calculate the required bucket thickness. Original thickness + measured clearance - desired clearance = required bucket thickness.

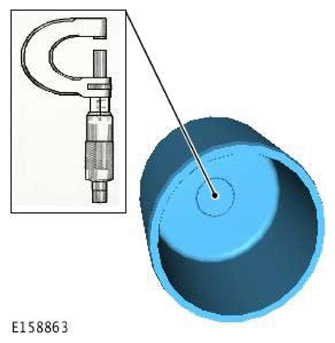

Remove the tappet and measure the thickness checking it against the specification table, replace if necessary.
Refer to: ENGINE - V6 S/C 3.0L PETROL
Renew Part: Valve graded tappet Quantity: 1 .
