Engine Oil Vacuum Draining And Filling (G2152248): Draining

WARNING: This page is about a different variant/trim than selected.

WARNING: The spilling of hot engine oil is unavoidable during this procedure, care must be taken to prevent scalding.

CAUTION: Correct installation of the oil filler cap can be obtained by tightening the cap until hard stop.

NOTE:

Make sure that the vehicle is parked on level ground.
Clean the components general area prior to dismantling.
This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.
Engine oil vacuum draining and filling is the recommended procedure for engine oil change during a scheduled service. Scheduled service labour times are calculated using this method.

Start the engine and allow to run for 10 minutes, stop the engine.
CAUTION: Make sure the engine is warm.
Remove the engine cover.
Refer to: ENGINE COVER - V6 S/C 3.0L PETROL

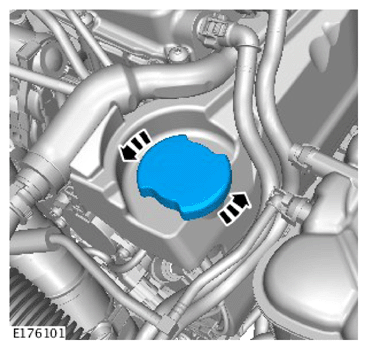

Remove the oil filler cap.
CAUTION: Allow 10 minutes from turning the engine off before starting oil extraction.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

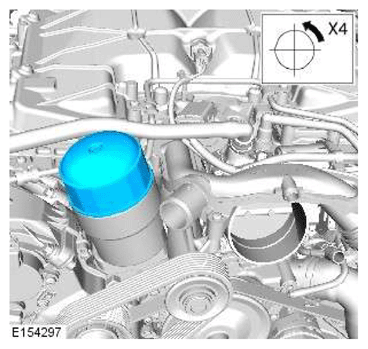

Release the oil filter element cap.
NOTE: Allow 10 minutes for the engine oil to drain from the oil filter housing.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

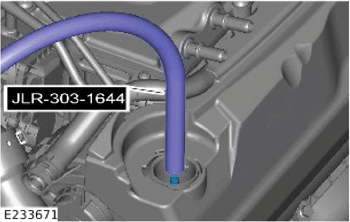

Using the oil vacuum pump drain the oil out through the oil extraction tube.
Special Tool(s): JLR-303-1644

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Remove the oil vacuum pump.

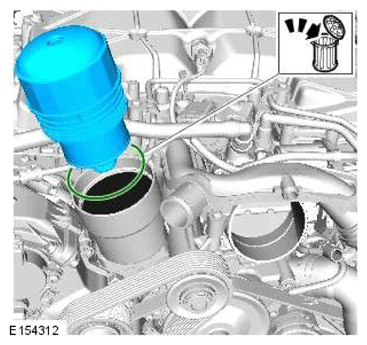

Remove the oil filter element.
NOTE: Remove and discard the O-ring seal.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

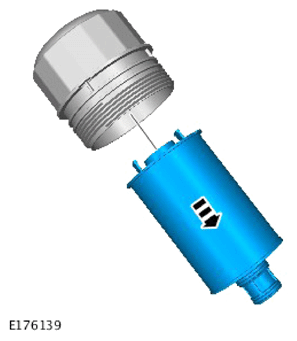

Remove the oil filter element from the cap and discard.
CAUTION: Remove and discard the oil filter element.
