Exhaust Manifolds
WARNING: This page is about a different variant/trim than selected.
NOTE:

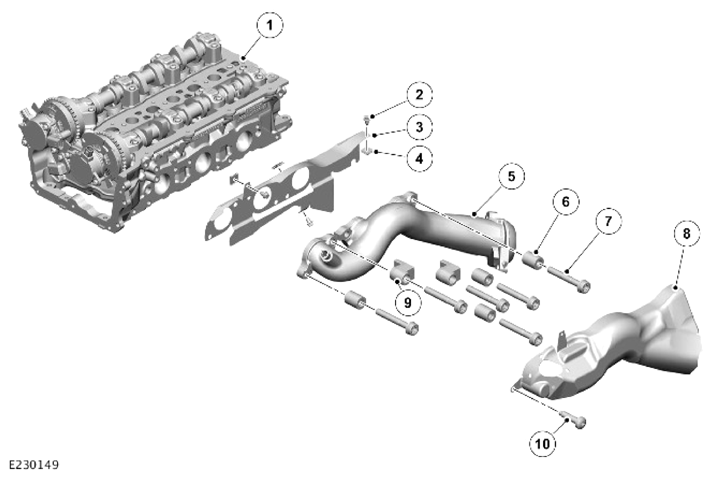

Bank 2 installation shown, Bank 1 installation similar.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Cylinder head |
| 2 | Screw (quantity 3) |
| 3 | Gasket |
| 4 | Threaded insert (quantity 3) |
| 5 | Exhaust manifold |
| 6 | Spacer (4 off) |
| 7 | Bolt (6 off) |
| 8 | Heat shield |
| 9 | Spacer (quantity 2) |
| 10 | Bolt |
The exhaust manifolds are unique for each cylinder bank and made from high silicon molybdenum cast iron. Each exhaust manifold installation includes a metal gasket and heat shields. Spacers on the securing bolts allow the manifolds to expand and contract with changes of temperature while maintaining the clamping force.
