Cylinder Numbering

WARNING: This page is about a different variant/trim than selected.

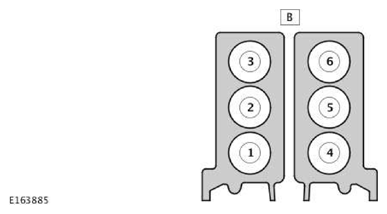

G11601694Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
ITEM DESCRIPTION
A DIN standard cylinder numbering

DIN cylinder firing order 1-4-2-5-3-6
