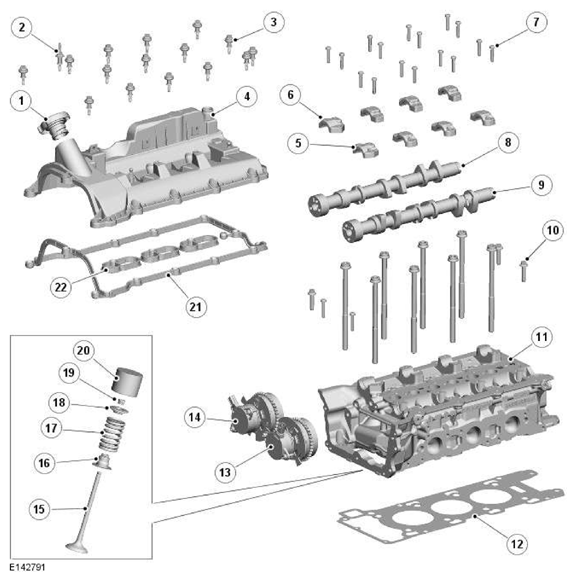

Cylinder Head Components
WARNING: This page is about a different variant/trim than selected.
NOTE:
Bank 2 cylinder head shown, Bank 1 cylinder head similar.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Oil filler cap assembly |
| 2 | Stud, nut, rubber washer and sleeve (quantity 3) |
| 3 | Bolt, rubber washer and sleeve (quantity 13) |
| 4 | Camshaft cover |
| 5 | Exhaust camshaft caps (quantity 4) |
| 6 | Intake camshaft caps (quantity 4) |
| 7 | Camshaft cap bolts (quantity 16) |
| 8 | Intake camshaft |
| 9 | Exhaust camshaft |
| 10 | Cylinder head bolts (quantity 13) |
| 11 | Cylinder head |
| 12 | Cylinder head gasket |
| 13 | Variable Camshaft Timing (VCT) solenoid (exhaust) |
| 14 | VCT solenoid (intake) |
| 15 | Valve (quantity 12 (6 intake, 6 exhaust) |
| 16 | Valve spring seat and stem seal (quantity 12) |
| 17 | Valve spring (quantity 12) |
| 18 | Valve spring retainer (quantity 12) |
| 19 | Valve spring collet (quantity 12) |
| 20 | Valve tappet (quantity 12) |
| 21 | Camshaft cover gasket |
| 22 | Camshaft cover gasket (quantity 3) for the spark plugs and fuel injectors. |
