Cylinder Block
WARNING: This page is about a different variant/trim than selected.

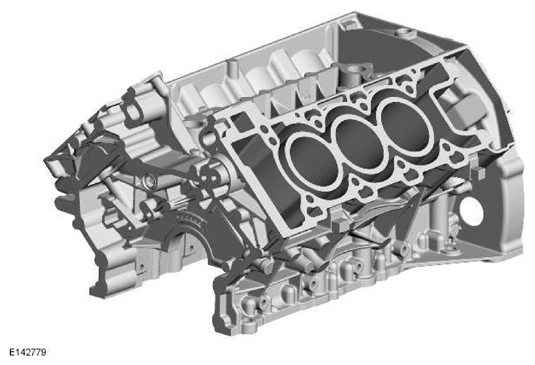

The high pressure die-cast aluminum cylinder block is a 90 degree configuration with cast-in iron cylinder liners and an open deck die-cast coolant jacket. The low volume coolant jacket gives good warm-up times and low piston noise levels. The longitudinal flow design of the coolant jacket, with a single cylinder head coolant transfer port in each bank, provides good rigidity and head gasket sealing.
