Engine - V6 S/C 3.0L Petrol (G2289296): Description: Crankshaft
WARNING: This page is about a different variant/trim than selected.

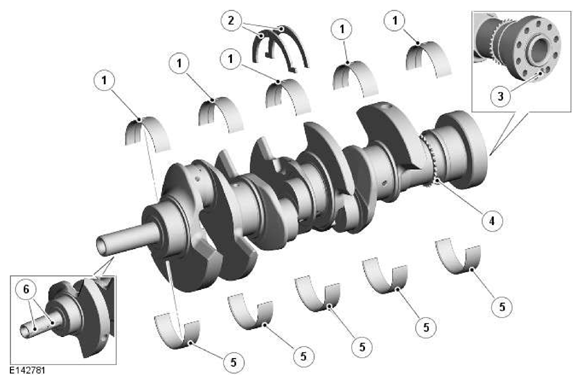

| ITEM | DESCRIPTION |
|---|---|
| 1 | Upper main bearing (quantity 5) |
| 2 | Thrust washer (quantity 2) |
| 3 | Drive plate location dowel |
| 4 | Rear dynamic balancer drive sprocket |
| 5 | Lower main bearing (quantity 5) |
| 6 | Woodruff key locations |
The crankshaft is manufactured from forged carbon steel with induction hardened main and pin bearing journals.
A 6 dynamic balancer design has been used to reduce vibration.
An oil grove in the upper half of each main bearing transfers the oil into the crankshaft for lubrication of the connecting rod bearings.
