Variable Camshaft Timing Actuator (G1963860): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Disconnect the startup battery ground cable.
Refer to: SPECIFICATIONS
Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING
Remove the secondary bulkhead center panel.
Refer to: SECONDARY BULKHEAD LEFT PANEL - INGENIUM I4 2.0L DIESEL
Remove the hood.
Refer to: HOOD
Remove the charge air cooler.
Refer to: CHARGE AIR COOLER
Remove the upper timing cover.
Refer to: UPPER TIMING COVER
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Disconnect the electrical connector.
- Release the 2 clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 2 nuts.
- Release the clip.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 2 bolts.
- Remove the charge air cooler bracket.

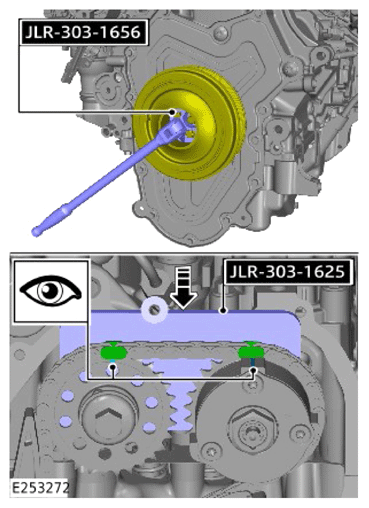

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the special tool.
  Special Tool(s): JLR-303-1656
- Use the special tool to rotate the crankshaft in a clockwise direction until the timing marks align as illustrated.
- Install the special tool.
  Special Tool(s): JLR-303-1625
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install and tighten the bolt.

Torque : 10 Nm

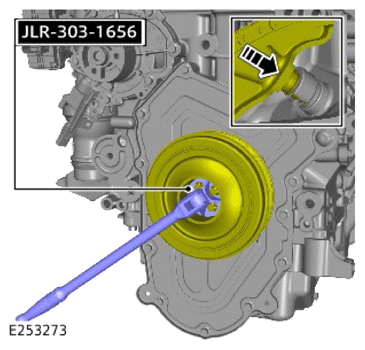

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the special tool.
  Special Tool(s): JLR-303-1656
- Use the special tool to rotate the crankshaft in a counter clockwise direction until the upper timing chain tensioner is fully compressed.

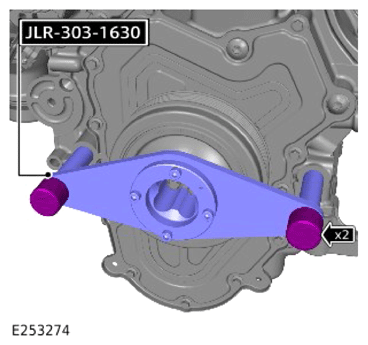

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the special tool.
  Special Tool(s): JLR-303-1630
- Install and tighten the 2 bolts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

The lower timing chain will not be under tension at the positions illustrated.

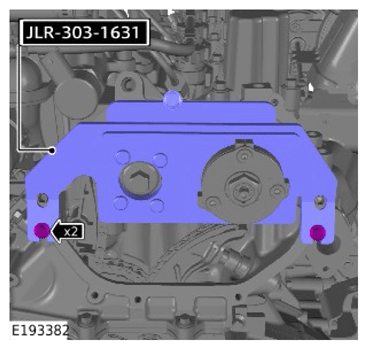

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the special tool.
  Special Tool(s): JLR-303-1631
- Install and tighten the 2 bolts.
  Torque : 10 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Loosen, but do not fully remove the bolt.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 2 bolts.
- Remove the special tool.
  Special Tool(s): JLR-303-1631
NOTE: Do not discard the upper timing chain tensioner.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the upper timing chain tensioner.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove and discard the bolt.
- Remove the Variable Camshaft Timing (VCT) actuator.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the bolt.
- Remove and discard the upper timing chain guide.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove and discard the upper timing chain guide.
