Variable Camshaft Timing Actuator (G1963860): Installation

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

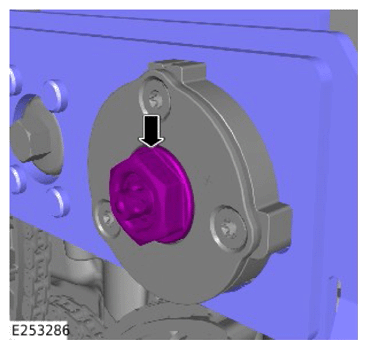

• Remove the access cover.
• Inspect the O-ring seal and replace if damaged.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

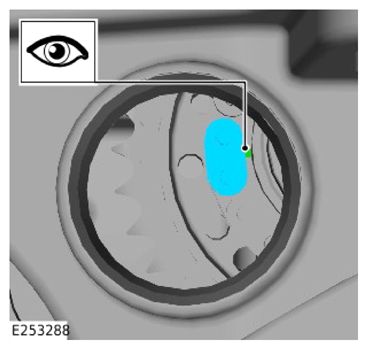

Make sure that the timing marks align as illustrated.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

• Install the Variable Camshaft Timing (VCT) actuator.
• Make sure that the timing marks align as illustrated.
• Install, but do not fully tighten the bolt.

  Renew Part: Variable camshaft timing actuator bolts Quantity: 1 .

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the access cover.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

• Install and tighten the upper timing chain tensioner.
• Release the upper timing chain tensioner.
• Check the gap between the timing chain and the cylinder head as illustrated.
• If the timing chain is not in the illustrated position, or there is no gap, reposition the timing chain and remeasure.
• Remove and discard the upper timing chain tensioner.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install a new upper timing chain guide.

Renew Part: Upper timing chain guide Quantity: 1 .

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

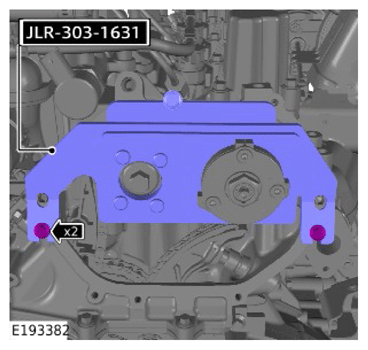

• Install the special tool.

  Special Tool(s): JLR-303-1631

• Install and tighten the 2 bolts.

  Torque  : 10 Nm

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Tighten the bolt.

Torque

Stage1: 10 Nm

Stage 2: Loosen 90°

Stage 3: 25 Nm

Stage 4: 40°

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

• Remove the 2 bolts.
• Remove the special tool.

  Special Tool(s): JLR-303-1631

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

• Install a new timing chain guide.

  Renew Part: Upper timing chain guide Quantity: 1 .

• Install and tighten the bolt.

  Torque  : 25 Nm

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Before installing the new timing chain tensioner, make sure that the ratchet clip is on the first groove.

Renew Part: Timing chain tensioner Quantity: 1 .

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install and tighten the new upper timing chain tensioner.

Torque  : 55 Nm

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Push and release the upper timing chain guide to release the upper timing chain tensioner.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

• Remove the bolt.
• Remove the special tool.

  Special Tool(s): JLR-303-1625

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

• Remove the 2 bolts.
• Remove the special tool.

  Special Tool(s): JLR-303-1630

Refer to: UPPER TIMING COVER

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

• Install the charge air cooler bracket.
• Install and tighten the 2 bolts.

  Torque  : 40 Nm

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

• Install and tighten the 2 bolts.

  Torque  : 12 Nm

• Install the 2 clips.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

• Connect the electrical connector.
• Install the 2 clips.

Refer to: CHARGE AIR COOLER

Refer to: HOOD

Refer to: SECONDARY BULKHEAD LEFT PANEL - INGENIUM I4 2.0L DIESEL

Refer to: SPECIFICATIONS
