Valves (G1867646): Removal
WARNING: This page is about a different variant/trim than selected.
- Refer to: CYLINDER HEAD

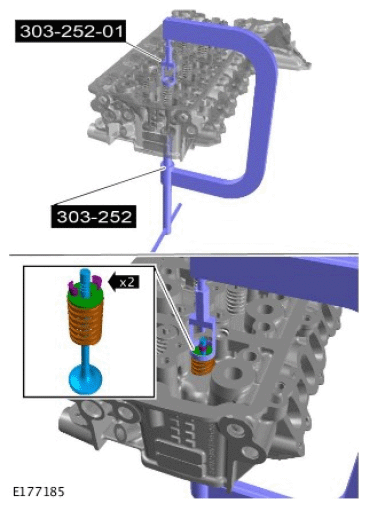

Using tool 303-252 compress valve spring. Remove 2 collets from valve stem using a magnet.
Remove spring cap, valve spring and valve.
