Valves (G1867646): Installation

WARNING: This page is about a different variant/trim than selected.

- Lap each valve to seat using fine grinding paste.
- Apply Prussian Blue to valve seat, insert valve and press it into position several times without rotating. Remove and check valve for even and central seating, seating position shown by blue should be in centre of valve face.
Remove all traces of grinding paste on completion.
NOTE: Lubricate valve stems and assemble valves.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

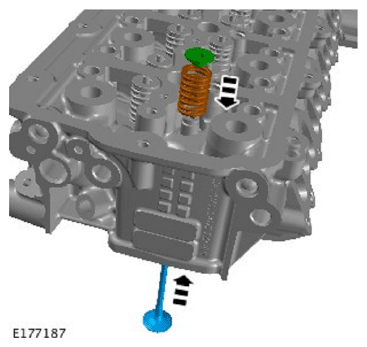

Install spring cap, valve spring and valve.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Refer to: CYLINDER HEAD
