Oil Pump Chain (G1947481): Notes

WARNING: This page is about a different variant/trim than selected.
12.65.15 GEAR - OIL PUMP DRIVE CHAIN - RENEW 3000 CC, AJ V6 (AJ126) 13.60
G11607051Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
12.65.15 GEAR - OIL PUMP DRIVE CHAIN - RENEW 5000 CC, AJ V8, SUPERCHARGED 12.80
G14280983Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
12.60.31 OIL PUMP DRIVE CHAIN AND DAMPER - RENEW 2000 CC, INGENIUM DIESEL 7.80
G14280990Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

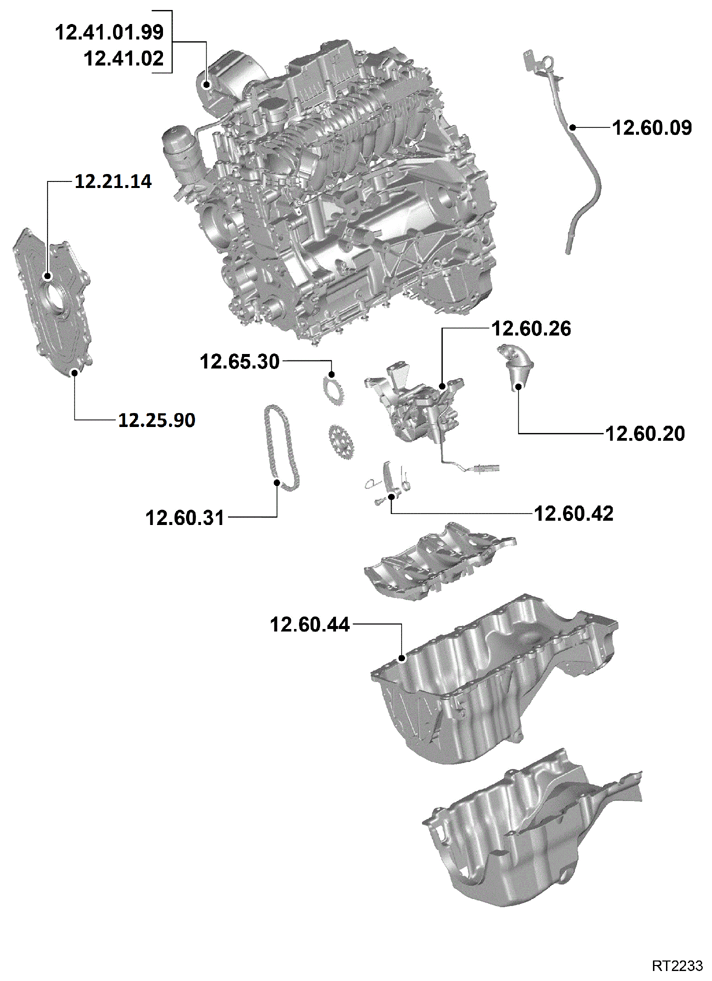

12.60.31 OIL PUMP DRIVE CHAIN AND DAMPER - RENEW 2000 CC, INGENIUM PETROL 7.70
G14280991Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
