Lower Timing Chain Cover Blanking Plug (G2320529): Removal

WARNING: This page is about a different variant/trim than selected.

CAUTION: Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Remove the engine undershield.
Refer to: ENGINE UNDERSHIELD
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

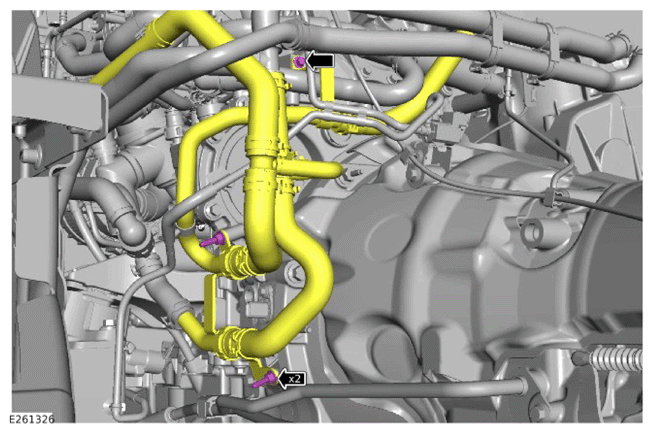

- Remove the 3 bolts.
- Reposition the coolant pipes away from the transmission.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

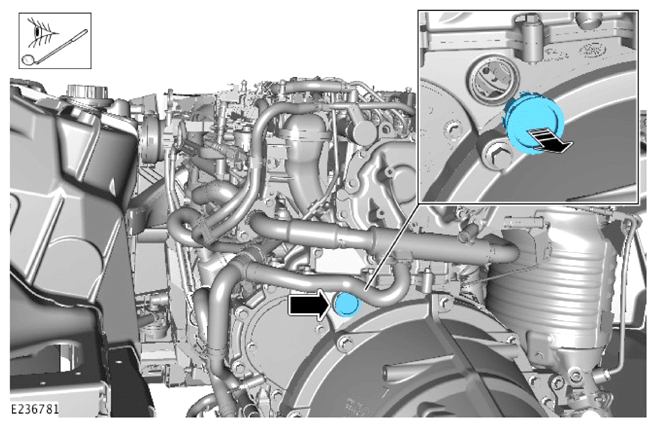

Using a suitable tool remove and discard the lower timing chain cover blanking plug.
