Intake Balance Shaft Gear Renew (G2928120): Installation
WARNING: This page is about a different variant/trim than selected.

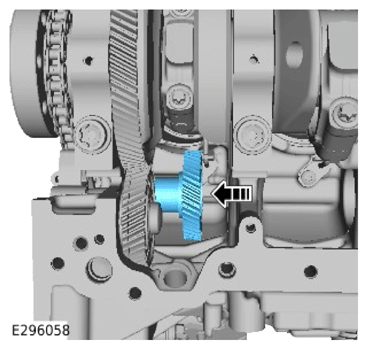

Install the intake balance shaft gear.
-

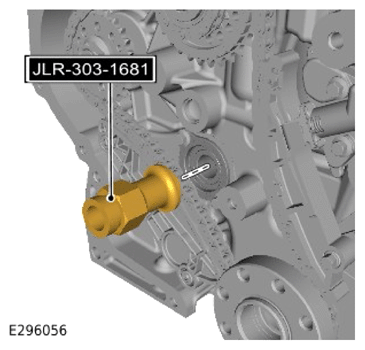

CAUTION: Install the special tool finger tight only.
Carefully install the balance shaft gear retaining tool finger tight.

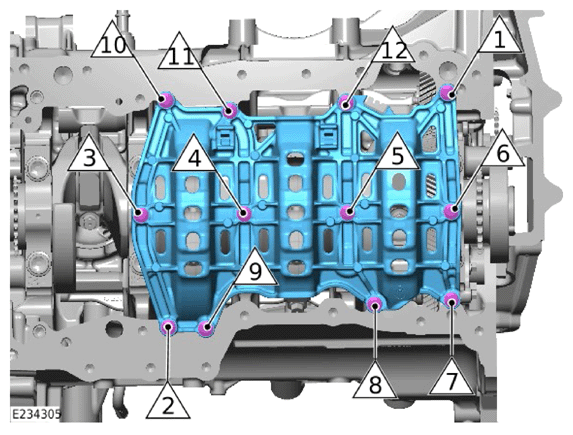

- Install the windage tray.
- Install and tighten the 12 bolts in the illustrated sequence.
Torque
Bolts 1 and 2: 12 Nm
Bolts 3 to 6: 10 Nm
Bolts 7 to 12: 12 Nm

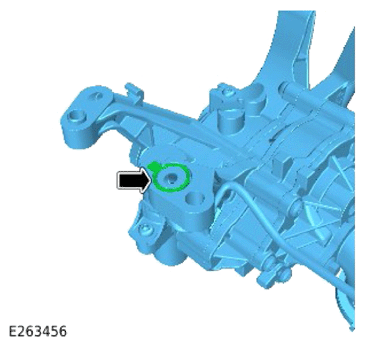

Install a new O-ring seal to the oil pump.
Renew Part: Oil pump O-ring seal Quantity: 1 .

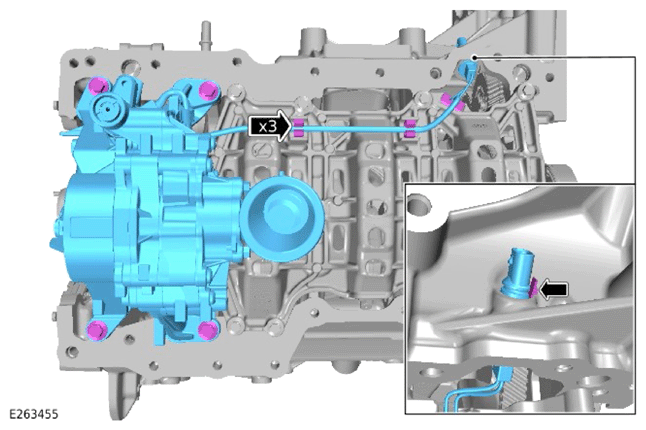

- Install the oil pump.
- Install and tighten the 4 bolts.
Renew Part: Oil pump bolts Quantity: 4 .
Torque : 25 Nm
- Install the oil pump electrical connector to the cylinder block.
- Install the wiring harness into the 3 clips.
- CAUTION: Make sure the oil pump drive sprocket is correctly installed.
- Install the 2 sprockets and the oil pump drive chain.
- Use the special tool to counter the force and install and tighten the bolt.
Renew Part: Oil pump gear bolt Quantity: 1 .
Torque
Stage 1: 60 Nm
Stage 2: 90°
-
NOTE: If equipped.
Release the oil pump chain tensioner.
Use a suitable tool and cleaning solution to clean the mating face.
-
CAUTION: Make sure all the mating faces are clean and free from foreign material.
Apply a continuous 3 mm diameter bead of sealant to the area illustrated.
- Install the oil pan.
- Install, but do not fully tighten the 2 shoulder bolts to the positions illustrated.
Install and tighten the 16 bolts in the illustrated sequence.
Torque
Bolts 1 to 13: 25 Nm
Bolt 14: 35 Nm
Bolts 15 and 16: 25 Nm
- Install the intake
side balance shaft.
Refer to: BALANCE SHAFT ASSEMBLY
