Exhaust Balance Shaft Gear Renew (G2928119): Installation

WARNING: This page is about a different variant/trim than selected.

CAUTION: The locking pin must stay in position during installation. If the pin is removed or dislodged, discard the gear.

NOTE: The crankshaft position may need to be constantly adjusted when installing the exhaust balance shaft gear.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

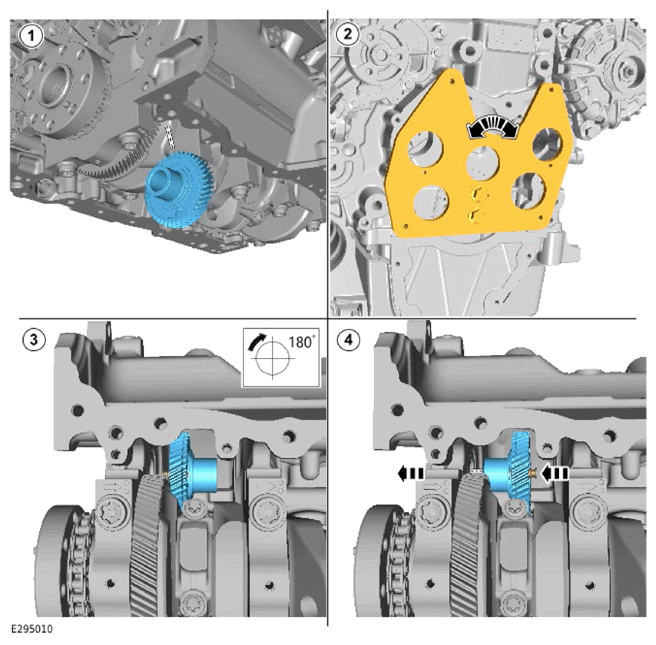

1. Install the exhaust balance shaft gear.
2. Use the special tool to rotate the crankshaft to allow the gear to be installed.
3. Rotate the gear 180°.
4. Install the exhaust balance shaft gear to the bearing housing.
CAUTION: Install the special tool finger tight only.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Carefully install the balance shaft gear retaining tool finger tight.

Special Tool(s): JLR-303-1681
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

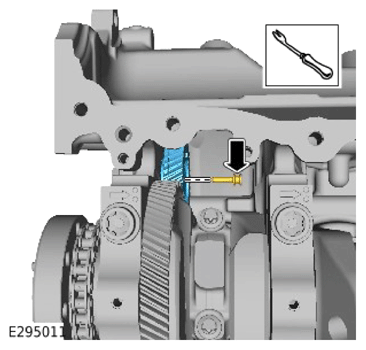

Use suitable tool to remove exhaust balance shaft gear the locking pin.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install and tighten the 4 bolts.

Torque : 10 Nm

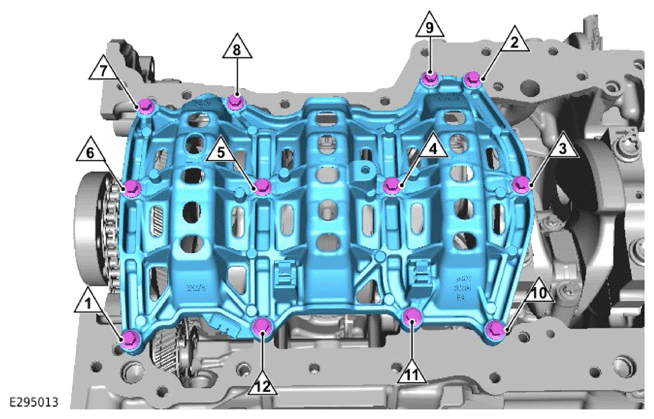

Fig 1: Windage Tray Tightening Sequence
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the windage tray.
- Install and tighten the bolts in the sequence shown.
  Torque

  Bolts 1 and 2: 12 Nm

  Bolts 3 to 6: 10 Nm

  Bolts 7 to 12: 12 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install a new O-ring seal to the oil pump.

Renew Part: Oil pump O-ring seal Quantity: 1 .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the oil pump.
- Install and tighten the 4 bolts.
  Renew Part: Oil pump bolts Quantity: 4 .

  Torque : 25 Nm
- Install the oil pump electrical connector to the cylinder block.
- Install the wiring harness into the 3 clips.
CAUTION: Make sure the oil pump drive sprocket is correctly installed.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the 2 sprockets and the oil pump drive chain.
- Use the special tool to counter the force and install and tighten a new bolt.
  Special Tool(s): 205-053

  Renew Part: Oil pump gear bolt Quantity: 1 .

  Torque

  Stage 1: 60 Nm

  Stage 2: 90°
NOTE: If equipped.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the locking pin and release the oil pump chain tensioner.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Use a suitable tool and cleaning solution to clean the mating face.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Use a suitable tool and cleaning solution to clean the mating face.
- Apply a continuous 3 mm diameter bead of sealant to the area illustrated.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the oil pan.
- Install, but do not fully tighten the 2 shoulder bolts to the positions illustrated.
Fig 2: Oil Pan Tightening Sequence
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install and tighten the bolts in the sequence shown.

Torque

Bolts 1 to 13: 25 Nm

Bolt 14: 35 Nm

Bolts 15 and 16: 25 Nm
Install the exhaust side balance shaft.
Refer to: BALANCE SHAFT ASSEMBLY
