Camshaft Carrier (G2172630): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Disconnect the startup battery ground cable.
Refer to: BATTERY AND CABLES
Remove the fuel rail.
Refer to: FUEL RAIL
Remove the fuel injectors.
Refer to: FUEL INJECTORS (G1867850)
Remove the upper timing chain.
Refer to: UPPER TIMING CHAIN
CAUTION: Use 2 suitable M6 X 20 bolts to install the special tool to the cylinder head.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

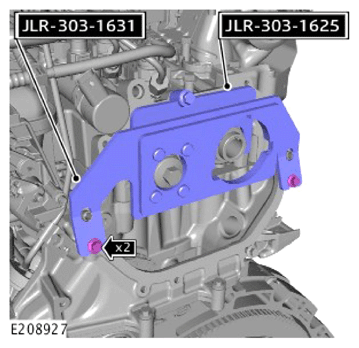

Install the special tool.

Special Tool(s): JLR-303-1631
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

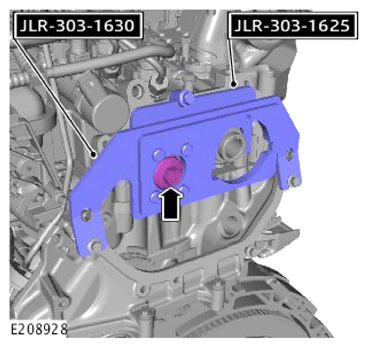

- Loosen the camshaft gear bolt but do not remove at this stage.
- Remove the special tool.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

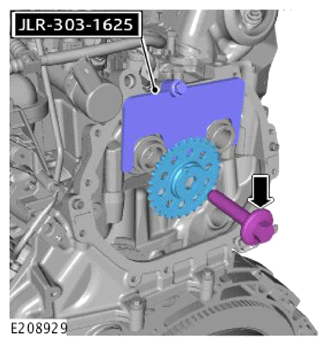

Remove the camshaft gear and discard the bolt.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the special tool.

Special Tool(s): JLR-303-1625
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the Noise, Vibration and Harshness (NVH) material.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Disconnect the 2 electrical connectors and position the harness to one side.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the cylinder head temperature sensor electrical connector bracket.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Position the breather vent module pipe to one side.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the camshaft carrier and discard the gasket.
NOTE:
- Do not disassemble further if the component is removed for access only.
- Note the orientation of the component prior to removal
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the camshaft bearing caps.
- Remove the camshafts.
- Inspect the components and renew if damaged or worn.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the breather vent module assembly and discard the gasket.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the oil filler neck and discard the seal.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the lifting brackets.
