Balance Shaft Assembly (G2244462): Removal

WARNING: This page is about a different variant/trim than selected.
NOTE:
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.

The following step(s) applies to:

All vehicles

  1. Before completing the balance shaft repair, make sure to have followed the Noise, Vibration and Harshness (NVH) balance shaft test procedure.

    Refer to: NVH BALANCE SHAFT TEST

  2. Remove the front bumper for access.

    Refer to: FRONT BUMPER - VEHICLES WITH: CORE SPECIFICATION

  3. Remove the coolant module for access.

    Refer to: COOLING MODULE

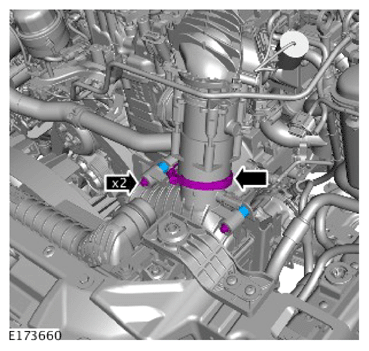

  4. G14281194Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Release the throttle body inlet pipe clamp.
    • Remove the charge air cooler retaining bolts.
  5. G12010414Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the charge air cooler inlet pipe.
    • Inspect the seals. Replace if damaged.

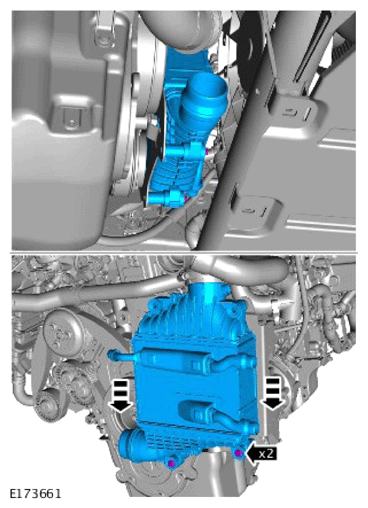

  6. G14281196Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the charge air cooler.

  7. G11714692Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Disconnect the electrical connector.
    • Release the 2 wiring harness clips.
  8. G11714693Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Release the wiring harness clip.
    • Remove the charge air cooler mounting bracket nuts.
  9. G11714694Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the charge air cooler mounting bracket.

  10. G11714916Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Insert a suitable tool, where illustrated, to prevent tension being applied to the accessory belt.

  11. G11714917Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the accessory drive belt.

  12. Remove the transmission for access.

    Refer to: TRANSMISSION - INGENIUM I4 2.0L DIESEL

  13. G14281202Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the engine brace to the vehicle.

    Install the Special Tool(s): JLR-303-1633-01  , JLR-303-1692  , JLR-303-1692-01

  14. NOTE: Allow 10 minutes for the engine oil to drain from the oil filter housing.
    G11714618Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Loosen the element cover 4 complete turns to allow engine oil to drain from the filter cap.
    • Make sure that the O-ring seal is exposed.
  15. G11714622Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove and discard the oil filter element.
    • Remove and discard the O-ring seal.

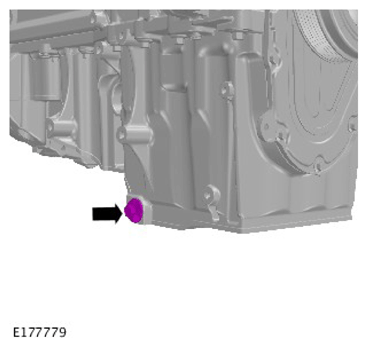

  16. G11731184Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Drain and discard the engine oil.

  17. Install a new oil pan drain plug.

    Renew Part: Oil pan drain plug Quantity:

    Torque  : 23 Nm

  18. NOTE: The engine may require rotating to the correct position before the special tool can be installed.
    G11714695Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install special tool JLR-303-1630 to the crankshaft damper. Make sure the central hub is located correctly.

    Install the Special Tool(s): JLR-303-1630

The following step(s) applies to:

Vehicles with manual transmission

  1. NOTE:
    • Slacken the bolts of the clutch pressure plate each 2 turns at a time in the sequence shown.
    • Discard the bolts.
    Fig 1: Clutch Pressure Plate Bolts Loosening Sequence
    G11717402Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove clutch assembly.

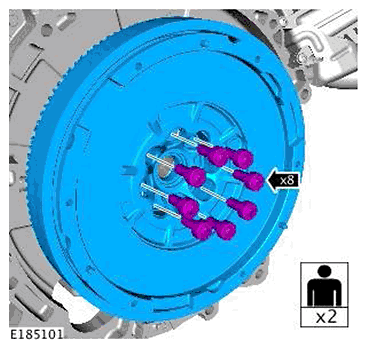

  2. Remove the flywheel.
    WARNING: This step requires the aid of another technician.
    NOTE: Discard the bolts.
    G11717146Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

The following step(s) applies to:

Vehicles with automatic transmission

  1. NOTE: Discard the bolts.
    G11715024Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the drive plate.

The following step(s) applies to:

All vehicles

  1. G11714696Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove 4 crankshaft damper bolts.

  2. G11714697Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the crankshaft damper locking tool and damper.

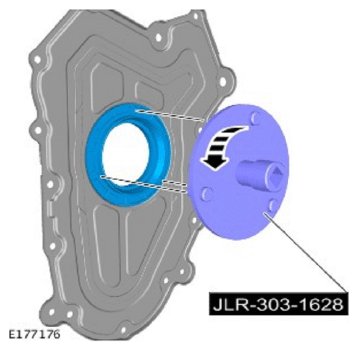

  3. G11714698Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Using the special tool remove and discard the front crankshaft seal.

    Install the Special Tool(s): JLR-303-1628

  4. G11715184Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the upper idler pulley.

  5. G11715185Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the left side idler pulley.

  6. G12002650Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the accessory drive belt tensioner.

  7. G11715186Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the engine front cover.

  8. G12002652Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Disconnect Crankshaft Position Sensor (CKP) electrical harness.

  9. G12002653Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the coolant hose.

  10. G12002654Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Disconnect the coolant hoses.

  11. G12002655Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the coolant pipe.

  12. G12002656Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the bolt from the upper timing cover.

  13. G12002657Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the lower timing cover upper bolts.

  14. G12002658Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the bracket bolt.

  15. CAUTION:
    • Note the position of the bolts, prior to removal.
    • Be prepared to collect escaping oil.
    G12002659Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the lower timing cover bolts. Using a suitable tool, remove the lower timing cover.

  16. NOTE: The crankshaft may require rotating to correctly position.
    G12002660Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the special tool end plate to the front of the engine, make sure the crankshaft pin aligns correctly.

    Special Tool(s): JLR-303-1681

  17. G12002661Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Loosely install the 2 bolts into the crankshaft, but do not tighten at this stage. A small amount of crankshaft movement may be required in other steps to assist the install of the balance shaft alignment tools.

  18. G12002662Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Gently rotate the end plate to align with the bolt holes, install the 4 bolts.

    Torque  : 10 Nm

  19. NOTE: If the alignment tool will not correctly locate in the rear of the balance shaft, carefully rotate the crankshaft a small amount at the drive plate end of the engine until the alignment tool is installed. The crankshaft will only require small movements, do not over rotate.
    G12002663Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Loosely install the balance shaft alignment tool, rotate the tool carefully to align with the balance shaft holes (1).

  20. G12002664Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Make sure the balance shaft alignment tool and bolt are installed correctly. The alignment tool must touch the end plate with no gap (1). The alignment tool bolt must be screwed into the end plate until it stops, there will be a gap of approximately 2.5 mm (2).

  21. G12002665Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the balance shaft bolt and washer.

  22. CAUTION: Install the special tool finger tight only.
    G12002666Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Carefully install the balance shaft gear retaining tool, do not  tighten at this stage.

  23. CAUTION: Install the special tool finger tight only.
    G12002667Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the release bolt into the balance shaft gear retaining tool, do not  tighten, install finger tight at this stage.

  24. CAUTION: Do not rotate the bolt without countering the adapter direction, failure to follow this instruction may result in damage to the vehicle.
    G12002668Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Using suitable tools, rotate the release bolt clockwise and the balance shaft gear retaining tool counter clockwise in one action to release the balance shaft from the gear taper (1). Do not continue to rotate the release bolt when the balance shaft has been released from the taper.

  25. CAUTION: The balance shaft gear retainer must remain on the engine.
    G12002669Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the release bolt, but do not  remove the balance shaft gear retainer.

  26. G12002670Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the extension tool to the balance shaft gear retainer.

  27. CAUTION: Do not over tighten the guide.
    G12002671Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the balance shaft guide through the extension and carefully thread the guide into the end of the balance shaft.

  28. G12002672Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the alignment tool bolt.

  29. G12002673Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Supporting points 1 and 2 in the illustration by hand, carefully slide the complete balance shaft assembly through the engine until the alignment tool (2) is free from the end plate.

  30. G12002674Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the balance shaft alignment tool.

  31. G12002675Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Holding the balance shaft end, carefully slide the complete assembly through the engine to install the new balance shaft.
    • Rotate the balance shaft and guide in opposite directions to release the balance shaft when installed.
