Engine Cooling - TDV6 3.0L Diesel (G2006257): Description: Thermostat
WARNING: This page is about a different variant/trim than selected.

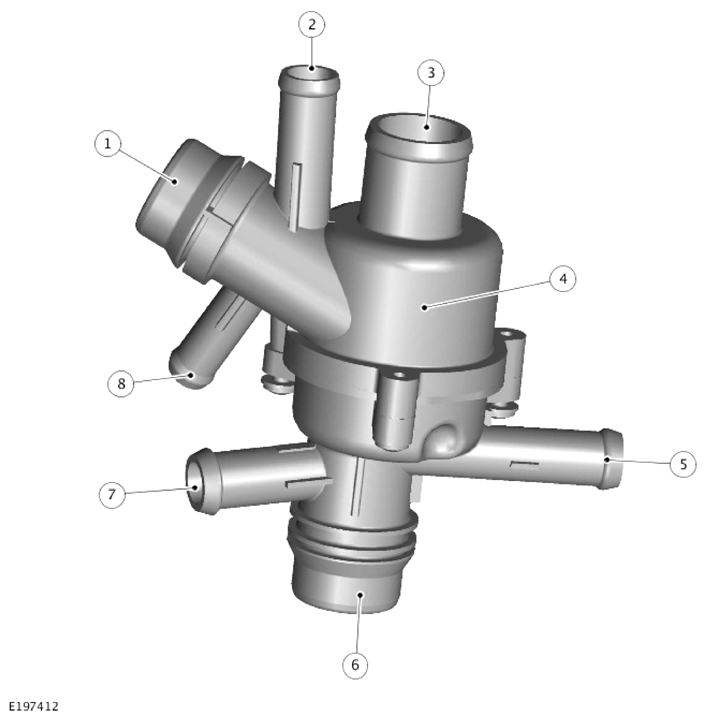

| ITEM | DESCRIPTION |
|---|---|
| 1 | Hose connection - Cylinder block engine coolant inlet |
| 2 | Hose connection - Heater core |
| 3 | Hose connection - Radiator upper hose |
| 4 | Thermostat housing |
| 5 | Hose connection - Auxiliary radiator |
| 6 | Hose connection - Radiator lower hose |
| 7 | Hose connection - Automatic Transmission Fluid (ATF) cooler |
| 8 | Hose connection - Coolant expansion tank |
A pressure relief type thermostat is located behind the radiator, on a bracket attached to the cooling fan shroud. The thermostat body contains a wax element and a spring loaded bypass valve.
The thermostat housing is connected to the following:
- The radiator upper hose
- The auxiliary radiator
- The radiator lower hose
- The Automatic Transmission Fluid (ATF) cooler
- The coolant expansion tank
- The feed hose to the variable coolant pump
- The return hose from the heater core
The thermostat allows rapid engine warm-up by preventing engine coolant flow through the radiator. The thermostat is limiting the engine coolant flow through the cylinder block when the engine is cold. The thermostat is not a serviceable item and it can be replaced as an assembly.
