Engine Cooling - TDV6 3.0L Diesel (G2006257): Description: Radiator
WARNING: This page is about a different variant/trim than selected.

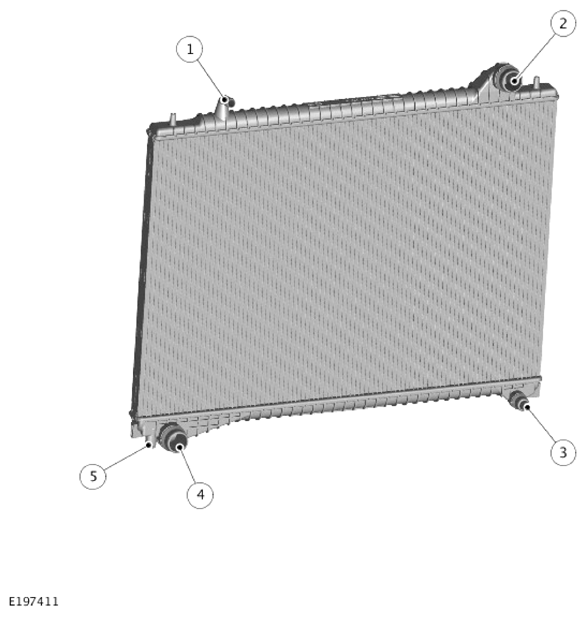

| ITEM | DESCRIPTION |
|---|---|
| 1 | Hose connection - Coolant expansion tank |
| 2 | Hose connection - Radiator upper hose |
| 3 | Hose connection - Automatic Transmission Fluid (ATF) cooler |
| 4 | Hose connection - Radiator lower hose |
| 5 | Bleed screw |
The radiator is a vertical-flow type with an aluminum core. The radiator is located in the vehicle by bushes attached to the end tanks. The lower bushes are installed in the front subframe and the upper bushes are installed in the front end carrier.
Upper and lower hose connections are incorporated into the upper and lower end tanks respectively. The lower end tank also incorporates a bleed screw and a connection for the engine coolant feed hose of the Automatic Transmission Fluid (ATF) cooler. The upper end tank incorporates a connection for a vent hose to the coolant expansion tank. The end tanks also incorporate mounting points for the cooling fan shroud and the Air Conditioning (A/C) condenser.
