Engine Coolant Outlet Tube
WARNING: This page is about a different variant/trim than selected.

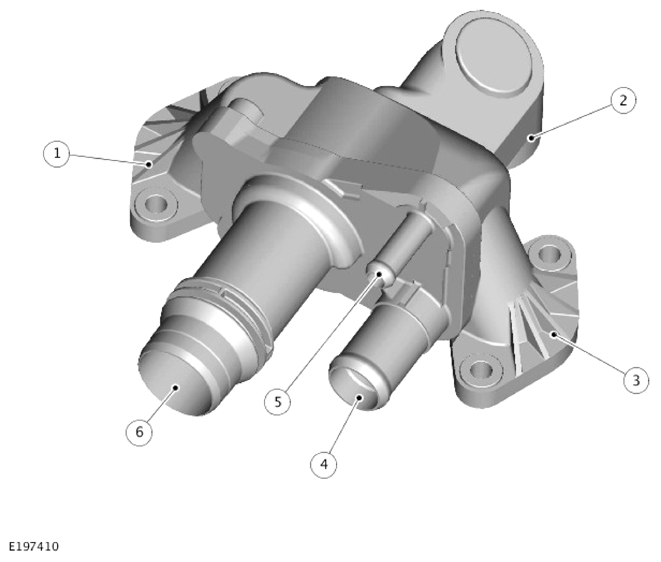

| ITEM | DESCRIPTION |
|---|---|
| 1 | Hose connection - Cylinder head - Bank 1 |
| 2 | Hose connection - Oil cooler |
| 3 | Hose connection - Cylinder head - Bank 2 |
| 4 | Hose connection - Exhaust Gas Recirculation (EGR) cooler |
| 5 | Hose connection - Coolant expansion tank |
| 6 | Hose connection - Radiator upper hose |
The engine coolant outlet tube routes hot engine coolant from the engine to the radiator top hose.
