Charge Air Cooler
WARNING: This page is about a different variant/trim than selected.

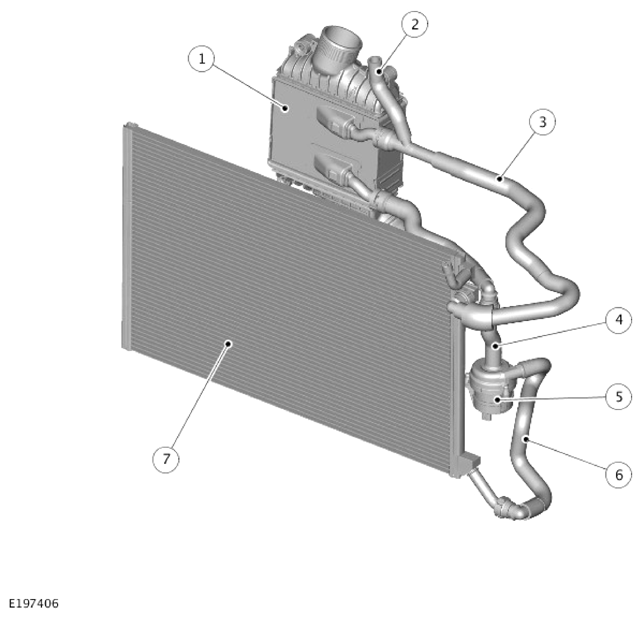

| ITEM | DESCRIPTION |
|---|---|
| 1 | Charge air cooler |
| 2 | Hose connection - Radiator upper hose |
| 3 | Hose connection - Charge air cooler to charge air radiator |
| 4 | Hose connection - Charge air cooler to charge air coolant pump |
| 5 | Charge air coolant pump |
| 6 | Hose connection - Charge air coolant pump to charge air radiator |
| 7 | Charge air radiator |
The charge air cooling system comprises:
- Charge air cooler
- Charge air radiator
- Charge air coolant pump.
The charge air cooler is an air-to-water heat exchanger, providing charge air cooling in combination with an electrical charge air coolant pump.
The charge air cooler is used to reduce the intake air temperature which increases the density of the intake air delivered to the combustion chambers.
The charge air cooler has a stand alone cooling system with its own charge air radiator, charge air coolant pump and hoses. The only connection to the main cooling circuit is a hose connection to the radiator upper hose. For additional information, refer to: INTAKE AIR DISTRIBUTION AND FILTERING
