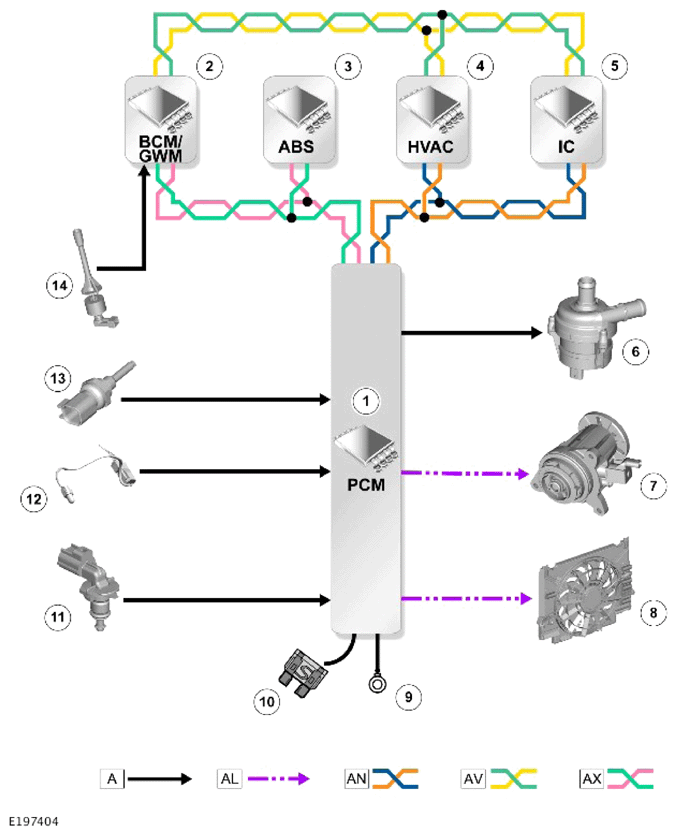

Control Diagram
WARNING: This page is about a different variant/trim than selected.
A = HARDWIRED: AL = PULSE WIDTH MODULATION (PWM): AN = HIGH SPEED (HS) CONTROLLER AREA NETWORK (CAN) POWERTRAIN BUS: AV = HIGH SPEED (HS) CONTROLLER AREA NETWORK (CAN) COMFORT BUS: AX = FLEXRAY.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Powertrain Control Module (PCM) |
| 2 | Body Control Module/Gateway Module (BCM/GWM) assembly |
| 3 | Anti-lock Brake System (ABS) control module |
| 4 | HVAC control module (HVAC) |
| 5 | Instrument Cluster (IC) |
| 6 | Charge air coolant pump |
| 7 | Solenoid - Variable coolant pump shroud |
| 8 | Electric cooling fan |
| 9 | Ground |
| 10 | Power supply |
| 11 | Engine coolant temperature sensor |
| 12 | Ambient Air Temperature (AAT) sensor |
| 13 | Cylinder head temperature sensor |
| 14 | Engine coolant level sensor |
