Fuel Cooler
WARNING: This page is about a different variant/trim than selected.

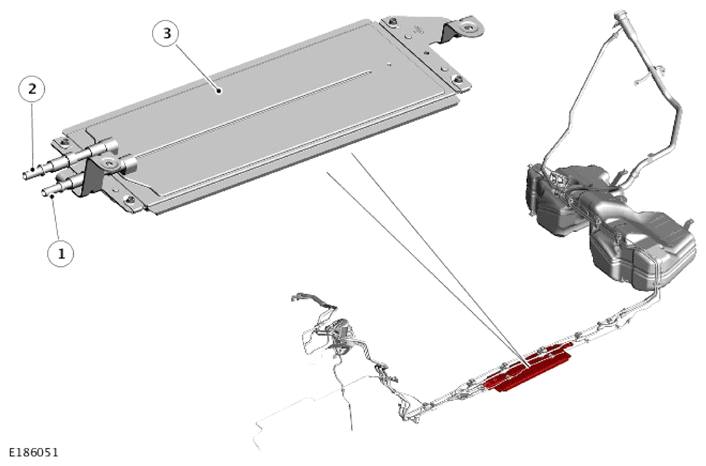

| ITEM | DESCRIPTION |
|---|---|
| 1 | Fuel inlet connection from fuel tank and return from engine fuel rail |
| 2 | Fuel outlet connection |
| 3 | Fuel cooler (Low Pressure (LP) side - Under vehicle) |
The Low Pressure (LP) fuel cooler is located under the vehicle floorpan, below the front left seat.
The fuel cooler is designed to cool fuel returning from the High Pressure (HP) pump. The cooled fuel is sent back to the fuel filter via the fuel delivery line. The cooler is air cooled.
