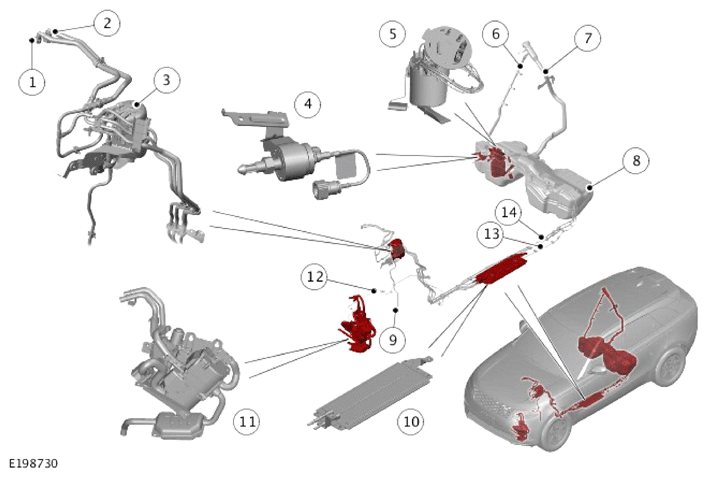

Component Location
WARNING: This page is about a different variant/trim than selected.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Fuel return pipe to fuel tank |
| 2 | Fuel supply pipe from fuel filter to High Pressure (HP) fuel pump |
| 3 | Fuel filter assembly |
| 4 | Fuel Fired Booster Heater (FFBH) fuel pump (if equipped) |
| 5 | Fuel pump module |
| 6 | Fuel tank breather pipe |
| 7 | Fuel filler pipe |
| 8 | Fuel tank assembly |
| 9 | Fuel filter water drain tube |
| 10 | Fuel cooler (Low Pressure (LP) side - under vehicle) |
| 11 | FFBH (if equipped) |
| 12 | FFBH fuel supply pipe (if equipped) |
| 13 | Fuel return line to fuel tank |
| 14 | Fuel supply line from fuel pump module |
