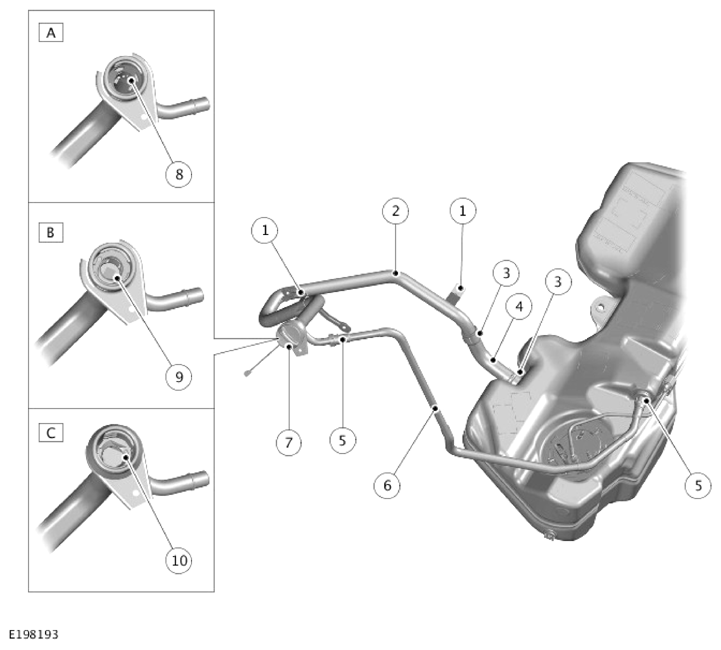

Fuel Filler Pipe And Breather Assembly
| ITEM | DESCRIPTION |
|---|---|
| A | Vehicles with active misfueling protection device |
| B | Vehicles with passive misfueling protection device |
| C | Vehicles without misfueling protection device |
| 1 | Bracket |
| 2 | Fuel filler pipe |
| 3 | Hose clamp |
| 4 | Fuel filler hose |
| 5 | Fuel breather pipe connector |
| 6 | Fuel breather pipe |
| 7 | Fuel cap |
| 8 | Active misfueling protection device restrictor |
| 9 | Passive misfueling protection device with fuel filler pipe restrictor flap |
| 10 | Fuel filler hose flap |
The neck of the fuel filler pipe is positioned at the rear of the vehicle, above the rear right wheel. The filler pipe and cap is covered by a molded plastic fuel flap.
The fuel flap has the option to be non-locking or electrically locked when the vehicle is locked.
The filler cap is a conventional screw in type which is secured to the vehicle with a tether. The filler cap must be securely fitted to provide that the fuel tank is sealed.
It should be screwed-in to a torque of 3 audible clicks (one click on North American Specification (NAS) market vehicles) to make sure it is correctly tightened.
The filler pipe is a stainless steel fabrication which is secured to the vehicle body with 2 brackets and nuts. A metal stub pipe, attached to the filler neck, provides for the attachment of the breather pipe.
The fuel filler pipe attaches to a stub port at the rear right of the fuel tank which incorporates a check valve. The in-line check valve is mounted inside the fuel tank inlet stub port, and is retained in the closed position by a spring. The check valve is only opened when the vehicle is refueled.
A breather pipe is connected between the fuel filler neck and the fuel tank. The breather pipe enables the fuel tank to be filled, allows for expansion of the fuel vapor and controls the fuel cut off during filling.
