Fuel Cooler
WARNING: This page is about a different variant/trim than selected.

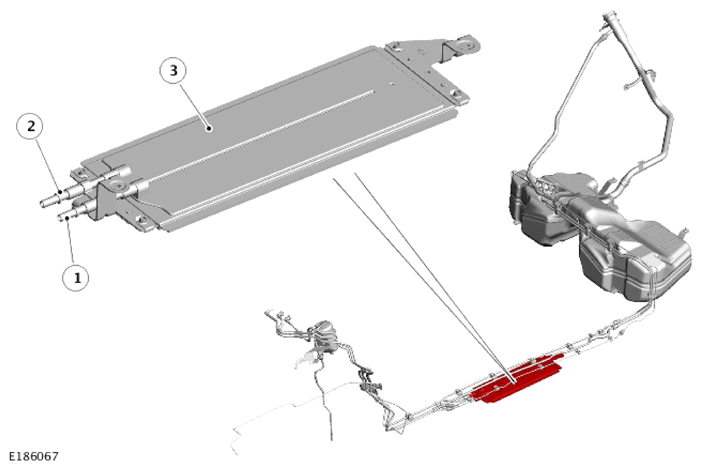

| ITEM | DESCRIPTION |
|---|---|
| 1 | Fuel inlet connection from fuel tank and return from engine fuel rail |
| 2 | Fuel feed outlet |
| 3 | Fuel cooler (Low Pressure (LP) side - under vehicle) |
The Low Pressure (LP) side fuel cooler is situated under the vehicle floorpan, below the front row left seat.
The fuel cooler is designed to cool fuel returning from the High Pressure (HP) pump before it is sent back to the fuel filter via the feed line. The cooler is air cooled.
