Radio Frequency Interference (RFI) Suppressor

WARNING: This page is about a different variant/trim than selected.

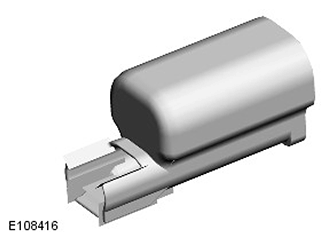

G11588517Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

The RFI suppressor is installed on the engine harness carrier at the rear of the engine. The suppressor is connected into the power supply from the PCM relay in the EJB to the coils.
