Ignition Switch

WARNING: This page is about a different variant/trim than selected.

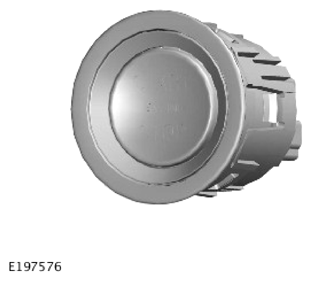

G14288350Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

The ignition switch is installed in the instrument panel and is hardwired to the Body Control Module/Gateway Module (BCM/GWM) assembly. When the ignition switch is operated two signal wires from the BCM/GWM assembly are connected to ground.
